FIGURE

Fig. 3

ID

ZDB-FIG-100616-76

Publication

Znosko et al., 2010 - Overlapping functions of Pea3 ETS transcription factors in FGF signaling during zebrafish development

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

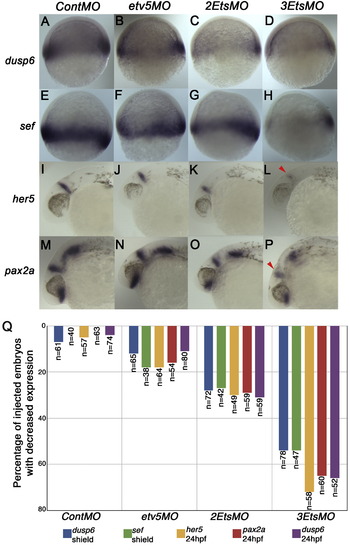

Pea3 ETS factors are required for target gene responses to FGF signaling. (A–P) Lateral views of embryos injected with MOs indicated above and assayed with probes indicated on the left. Expression of FGF target genes, dusp6 and sef, were unchanged in etv5MO-injected embryos (B, F). In contrast, the double or triple knockdown of Pea3 ETS genes elicited a drastic reduction of dusp6 and sef (C, D, G, H). Knockdown of Pea3 ETS genes resulted in MHB defect as measured by her5 (I–L) and pax2a (M–P) expression. Individual knock-down had minimal effects, while 3EtsMO injections resulted in dramatic reduction of her5 (L) and pax2a (P). (Q) Graph depicting the phenotypic effects of etv5MO, 2EtsMO and 3EtsMO on expression FGF target genes and MHB markers. Red arrowhead marks loss of MHB gene expression.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 342(1), Znosko, W.A., Yu, S., Thomas, K., Molina, G.A., Li, C., Tsang, W., Dawid, I.B., Moon, A.M., and Tsang, M., Overlapping functions of Pea3 ETS transcription factors in FGF signaling during zebrafish development, 11-25, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
