Fig. 3

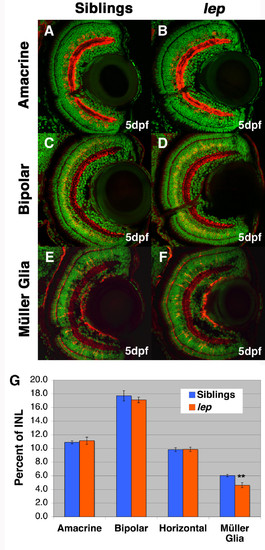

All neuronal cell types in the lep/ptc2 INL are increased proportionately, while Müller glia are reduced. Immunohistochemistry of sibling (A, C, E) and lep/ptc2 (B, D, F) retinas for Amacrine cells (A, B), Bipolar cells (C, D), and Müller glia (E, F). G) Cell counts for each INL cell type. No significant change is cell number in all neuronal cell types when calculated as a percentage of total INL cells. Müller glia, however, were reduced in lep/ptc2 retinas by 29% relative to sibling retinas (**p = 0.0013). |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Observed In: | |
| Stage: | Day 5 |
Phenotype Detail
