Fig. 2

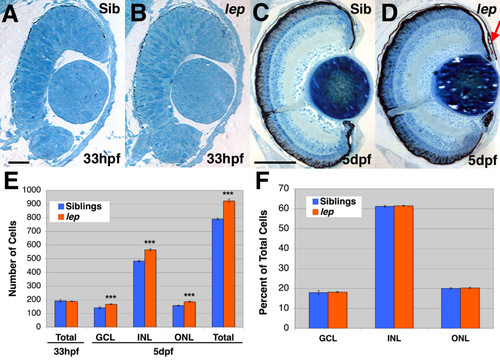

lep/ptc2 mutant retinas possess proportional increases in cell numbers in all three nuclear layers. Histology of sibling (A, C) and lep/ptc2 mutant (B, D) retinas at 33hpf (A, B) and 5dpf (C, D). E) Quantification of total number of retinal cells at 33hpf and 5dpf, and of cells in each nuclear layer at 5dpf (18.0%, 17.0%, and 17.8% increases in GCL, INL, and ONL, respectively. ***p < 0.0001). F) Graph of the proportion of each nuclear layer as a percentage of total retinal cells at 5dpf. Scale Bars = 20 μm in A, B and 100 μm in C, D.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ptch1^tj222/tj222 (AB)
Observed In:	retina retina cell retinal ganglion cell layer cell retinal inner nuclear layer cell retinal outer nuclear layer cell
Stage Range:	Prim-15 to Day 5

Phenotype Detail
