FIGURE

Fig. S4

ID

ZDB-FIG-090710-41

Publication

Kategaya et al., 2009 - Bili inhibits Wnt/beta-catenin signaling by regulating the recruitment of axin to LRP6

Other Figures

All Figure Page

Back to All Figure Page

Fig. S4

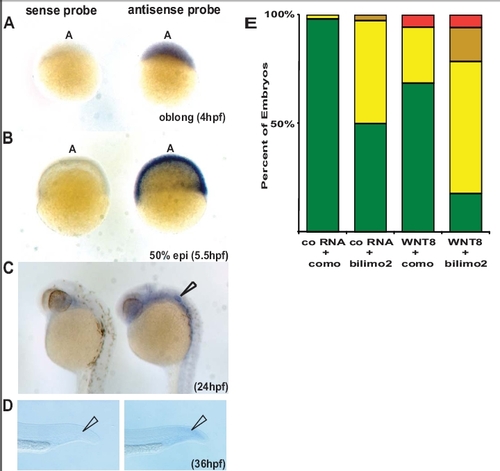

The zebrafish homolog of Bili (zfBili) is expressed during embryogenesis. In situ hybridization using a sense (left column) and antisense probes (right column) were used to detect mRNA. (A) zfBili is expressed maternally as it is detected in the animal pole 4 h post-fertilization. (B) zfBili continues to be expressed ubiquitously at 50% epiboly. (C) 24 hpf zfBili remains ubiquitous but shows specific staining in the otic vesicle (arrow head). (D) Weak Bili expression in the tail at 36 hpf. (E) A second morpholino targeting zfBili (bilimo2) but not a control morpholino (como) enhances the Wnt8 overexpression phenotype (n = 50 for each condition). Embryos were scored as wt (green), small eyes (yellow), no eyes (orange) or severe (red). Data shown is representative from four independent experiments.

Expression Data

Gene:	frmd8
Fish:	WT
Anatomical Terms:	otic vesicle post-vent region whole organism
Stage Range:	Sphere to Prim-25

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
