Fig. 3

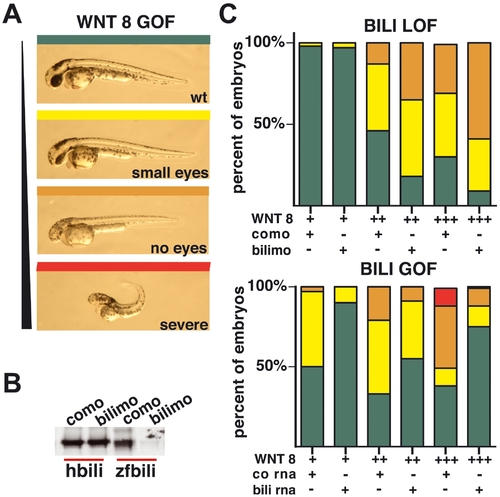

Bili′s effect on Wnt signaling is conserved in zebrafish.

(A) Wnt8 overexpression phenotypes with increasing severity. Embryos were scored as wt (green), small eyes (yellow), no eyes (orange) or severe (red). (B) Morpholino effect on in vitro expression of human Bili (hBili) or zfBili protein (control (como) or zfBili morpholino (bilimo)). (C) In the top panel, the effect of bilimo (loss of function) on Wnt8 GOF phenotype compared to como, is shown (n = 73 low Wnt dose, n = 147 medium Wnt dose, n = 57 high Wnt dose). Bili GOF (bili rna) rescues Wnt8 overexpression phenotype (control Renilla (co rna)). (n = 125 per dose of Wnt8) (bottom panel).
