Fig. 1

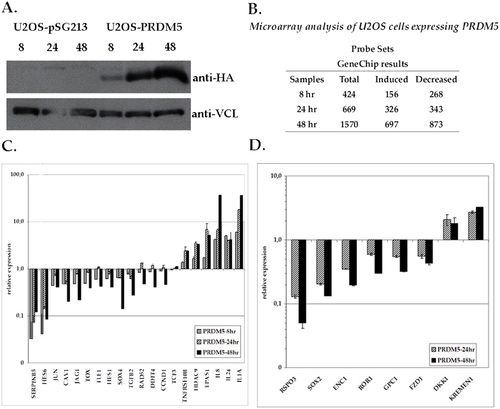

Gene expression profiling of a U2OS cell line overexpressing PRDM5.

A. Western Blot analysis of PRDM5 protein expression in the U2OS-PRDM5 clone. PRDM5 protein level was analyzed 8, 24 and 48 hours after doxycycline treatment. U2OS cells bearing the empty vector (U2OS-pSG213) were used as control. HA-tagged PRDM5 was detected by immunoblot with an anti-HA antibody; anti-vinculin (anti-VCL) antibody was used for normalization of protein levels. B. Number of regulated Affymetrix probe sets identified by gene expression profiling at each time point. C–D. Expression level of PRDM5 target genes. Relative mRNA levels (logarithmic scale) of induced and repressed genes in U2OS cells after expression of PRDM5 for 8, 24 and 48 hours, as assayed by qPCR. A collection of PRDM5 target genes randomly selected (C) or of the wnt pathways (D) is shown.
