Fig. 5

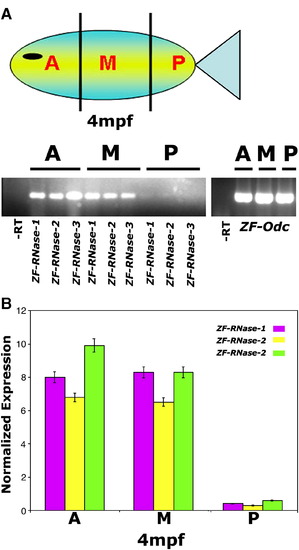

Temporal expression of ZF-RNases-1, -2 and -3 genes in adult zebrafish. A, 4-month-old zebrafish dissected into anterior (A), mid (M) and posterior (P) part toward the body plan axis and analyzed by reverse transcriptase followed by PCR (RT-PCR) for the expression of ZF-RNases-1, -2 and -3 genes. The -RT lane is a negative control for the reverse transcription reaction. RNAs ZF-Odc is a loading control. B, quantitative analysis of ZF-RNases-1, -2 and -3 genes performed by real-time PCR. ZF-RNases-1, -2 and -3 genes expression is mainly detected in the anterior (A) and mid- (M) parts of the body. Note, only a slight expression of ZF-RNases-1, -2 and -3 genes is observed in the posterior part (P). Quantified mRNA values were normalized by the amounts of ZF-Odc mRNA, the house keeping gene, and results are given as fold induction.

Expression Data

Genes:	rnasel1 rnasel2 rnasel3
Fish:	WT
Anatomical Term:	whole organism
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene, 427(1-2), Quarto, N., Pizzo, E., and D'Alessio, G., Temporal and spatial expression of RNases from zebrafish (Danio rerio), 32-41, Copyright (2008) with permission from Elsevier. Full text @ Gene
