Fig. 8

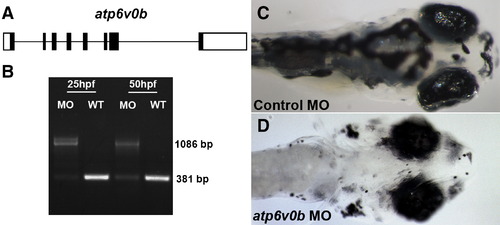

atp6v0b morpholinos do not phenocopy blowout. (A) The atp6v0b predicted genomic organization. atp6v0b MO targets the exon1/intron1 splice junction and leads to the inclusion of a 705 bp intron1 and the introduction of a premature stop codon. (B) RT-PCR validation of splice blocking efficacy of the atp6v0b MO. (C) Control injected and (D) atp6v0b morphant (13 ng) at 5 dpf. Morphants display oculocutaneous albinism and retinal degeneration but show no signs of colobomas even at the highest doses of MO injection.

Expression Data

Gene:	atp6v0b
Fish:	AB AB + MO1-atp6v0b
Knockdown Reagent:	MO1-atp6v0b
Anatomical Term:	whole organism
Stage Range:	Prim-5 to Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO1-atp6v0b
Knockdown Reagent:	MO1-atp6v0b
Observed In:	eye integument retina
Stage:	Day 5

Phenotype Detail
