Fig. 7
Fig. 7

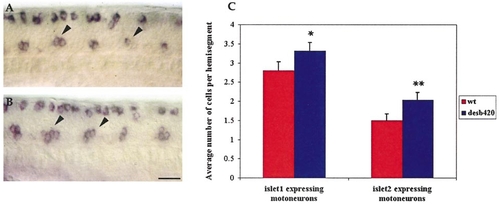

desb420 mutants have excess primary motoneurons. CaP and VaP motoneurons (arrowheads) as revealed by islet2 RNA in situ hybridization at 20 h in a wild-type (A) and mutant (B) embryo. (C) Counts of islet1 and islet2 expressing cells at 20 h in spinal hemisegments 5–9; n = 10 embryos for each point. For these and all subsequent histograms the mean ± 95% confidence interval is plotted. Significance was determined by Student’s t test with *, P = 0.01–0.001; **, P < 0.001. Scale bar, 25 μm. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Fish: | |
---|---|
Observed In: | |
Stage: | 20-25 somites |
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 237(2), Gray, M., Moens, C.B., Amacher, S.L., Eisen, J.S., and Beattie, C.E., Zebrafish deadly seven functions in neurogenesis, 306-323, Copyright (2001) with permission from Elsevier. Full text @ Dev. Biol.
