Fig. 3

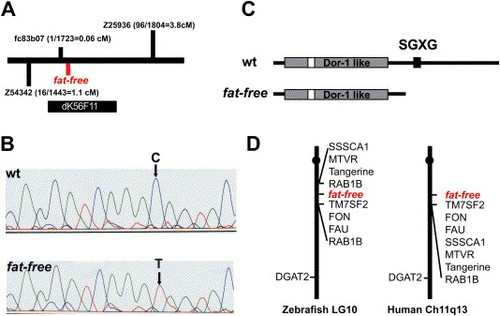

Positional cloning of the zebrafish ffr locus A) Schematic of the ffr locus. Marker fc83b07 is 0.06 cM from the ffr locus (1 recombinant out of 1732 meioses). A radiolabeled probe synthesized from fc83b07 identified five BAC clones. Mapping using the end sequences of these BAC clones indicated that clone dK56F11 spanned the entire ffr locus. B) A single nucleotide mutation (C to T) that results in a premature stop codon was identified in ffr mutants (0 recombinants > 2000 meioses) within a predicted open reading of dK56F11. C) Domain analysis indicates that Ffr has a Dor-1 like domain, a tyrosine phosphorylation site (Tyr-P), and a SGXG motif. The truncated mutant protein is predicted to be approximately half the length of wild-type Ffr. D) ffr is located on zebrafish chromosome 10 in a region syntenic to a region of human chromosome 11q13.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell Metabolism, 3(4), Ho, S.Y., Lorent, K., Pack, M., and Farber, S.A., Zebrafish fat-free is required for intestinal lipid absorption and Golgi apparatus structure, 289-300, Copyright (2006) with permission from Elsevier. Full text @ Cell Metab.
