Fig. 2

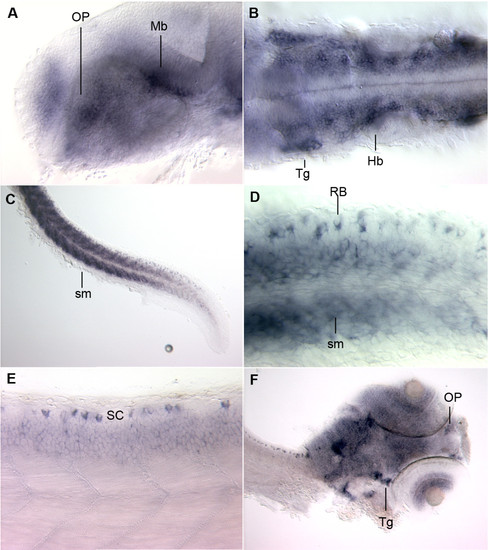

In situ hybridization. A ? D: Fish stained at 24 hpf. A. Staining is apparent in the olfactory placode (OP) and the midbrain (Mb). B. Dorsal mount showing staining in the trigeminal neuron (Tg) and in the rhombomeres of the hindbrain (Hb). C. Staining in spinal cord and skeletal muscle (sm). D. Higher magnification of Rohon Beard cells (RB) flanking skeletal muscle (sm). E. Fish at 48 hpf with staining in the Rohan Beard cells of the spinal cord (SC) and in the skeletal muscle. F. Staining throughout the brain, at the olfactory pits (OP), in the layers of the retina, and in the trigeminal ganglion (Tg) of fish at 72 hpf.

Expression Data

Gene:	scn1ba
Fish:	WT
Anatomical Terms:	hindbrain midbrain olfactory pit olfactory placode retina Rohon-Beard neuron skeletal muscle cell spinal cord trigeminal ganglion (all 9)
Stage Range:	Prim-5 to Protruding-mouth
