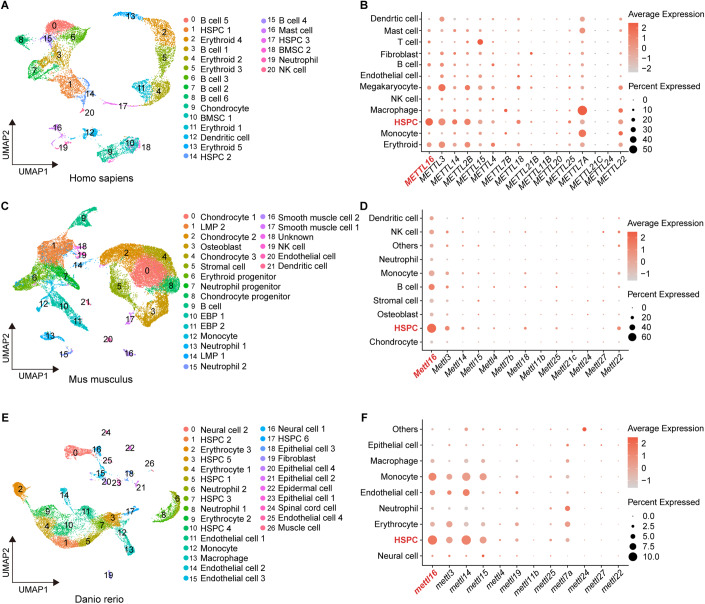

Figure 1 METTL16 is highly expressed in HSPCs among vertebrate

(A) Uniform manifold approximation and project (UMAP) visualization of 21 hematopoietic cell clusters from the fetal liver of humans. HRA002414. BMSC bone marrow stromal cells. (B) Dot plot showing the expression of METTL genes in hematopoietic cell clusters in (A). (C) UMAP visualization of 22 hematopoietic cell clusters from the fetal liver of mice. CRA006858. LMP lymphoid-primed multipotent progenitors, EBP eosinophil/basophil progenitors. (D) Dot plot showing the expression of METTL genes in hematopoietic cell clusters in (C). (E) UMAP visualization of 27 hematopoietic cell clusters from the caudal hematopoietic tissue (CHT) of zebrafish. GSE146404. (F) Dot plot showing the expression of METTL genes in hematopoietic cell clusters in (E).
