Figure 5

ID
ZDB-IMAGE-240513-144
Source
Figures for Du et al., 2024
Figure Caption

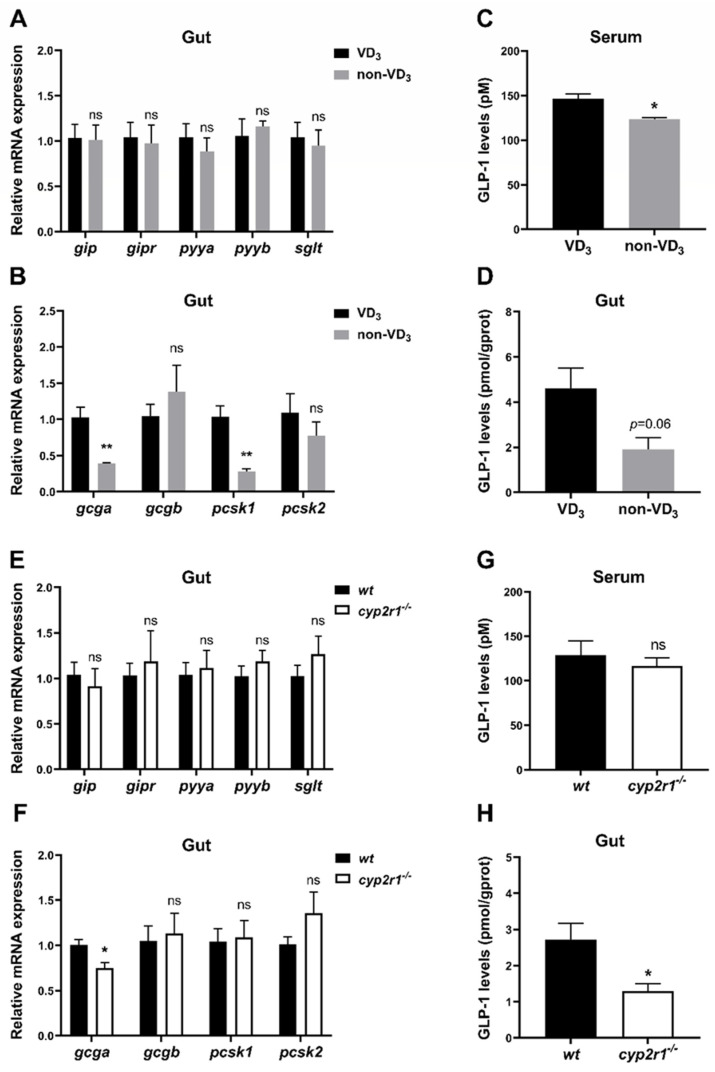

Figure 5

VD3 promotes the synthesis and processing of GLP-1 in the gut under short-term fasting conditions. (AD) Zebrafish were fed with or without VD3 for a month and fasted for 24 h. The gene expression of gip, gipr, pyya, pyyb, sglt (A) and gcga, gcgb, pcsk1, pcsk2 (B) in the gut was analyzed (n = 4/group). GLP-1 levels in the serum (C) and the intestine (D) were measured (n = 3 replicates, 4~5 fish/replicate). (EH) WT and cyp2r1−/− zebrafish at 3 mpf fasted for 24 h. The gene expression of gip, gipr, pyya, pyyb, sglt (E), and gcga, gcgb, pcsk1, pcsk2 (F) in the intestine was analyzed (n = 5/genotype). GLP-1 levels in the serum (G) (n = 4 replicates, 3 fish/replicate) and the intestine (H) (n = 3/ genotype) were measured. * p < 0.05, ** p < 0.01, ns: no statistical significance.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nutrients
