Figure 4

ID
ZDB-IMAGE-240513-143
Source
Figures for Du et al., 2024
Figure Caption

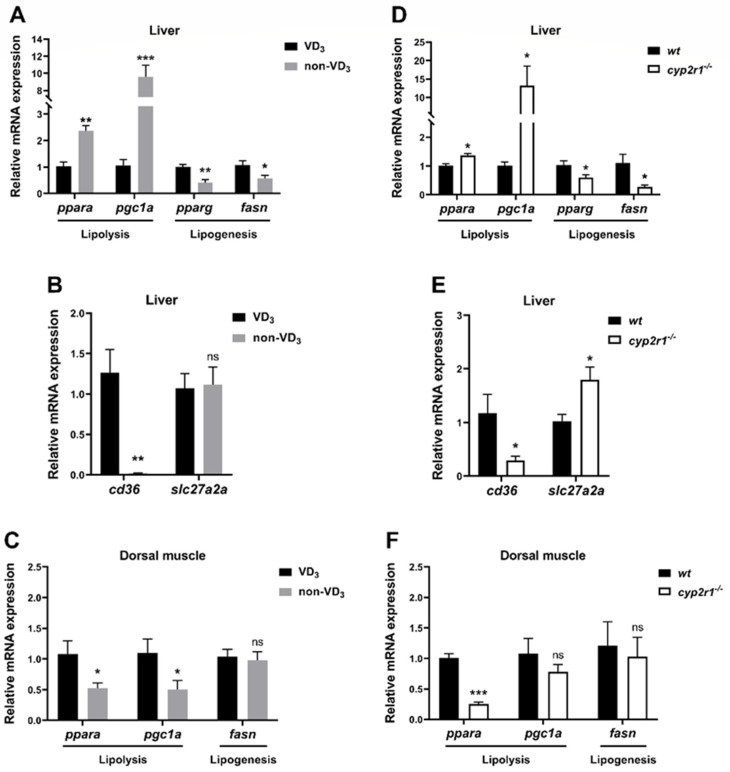

Figure 4

VD regulates lipid metabolism in zebrafish under short-term fasting conditions. (AC) After the last feeding, zebrafish fed with VD3 or non-VD3 diet were fasted for 24 h before sampling. The gene expression of ppara, pgc1a, pparg, fasn (A) (n = 4/group), and FFA absorption-related genes cd36, slc27a2a (B) (n = 5/group) in the liver were determined. The gene expressions of ppara, pgc1a, fasn in the dorsal muscle were analyzed (C) (n = 6/group). (DF) WT and cyp2r1−/− zebrafish at 3 mpf were fasted for 24 h before sampling. The gene expressions of ppara, pgc1a, pparg, fasn (D) (n = 4/genotype), and cd36, slc27a2a (E) (n = 4/genotype) in the liver were determined. The gene expressions of ppara, pgc1a, fasn in the dorsal muscle were determined (F) (n = 4/genotype). * p < 0.05, ** p < 0.01, *** p < 0.001, ns: no statistical significance.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nutrients
