Figure 9

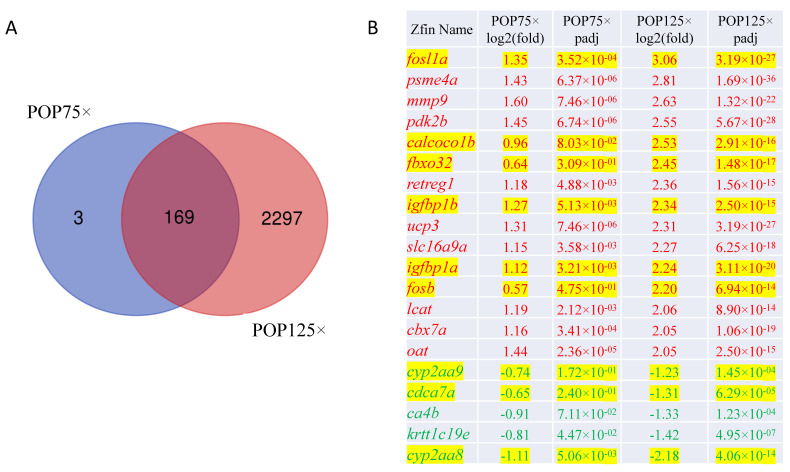

(A) Venn diagram comparing the lists of genes affected by POP1 or POP2 treatment. (B) Most highly and significantly regulated genes upon treatment with both POP total mix concentrations at 5 dpf. Log(fold change) and significance (adjusted p-value) are shown. Upregulated genes are in red, downregulated in green, while genes discussed in the text are highlighted in yellow.
