ZFIN Image: Saelens et al., 2022, Fig. 5


Figure Caption

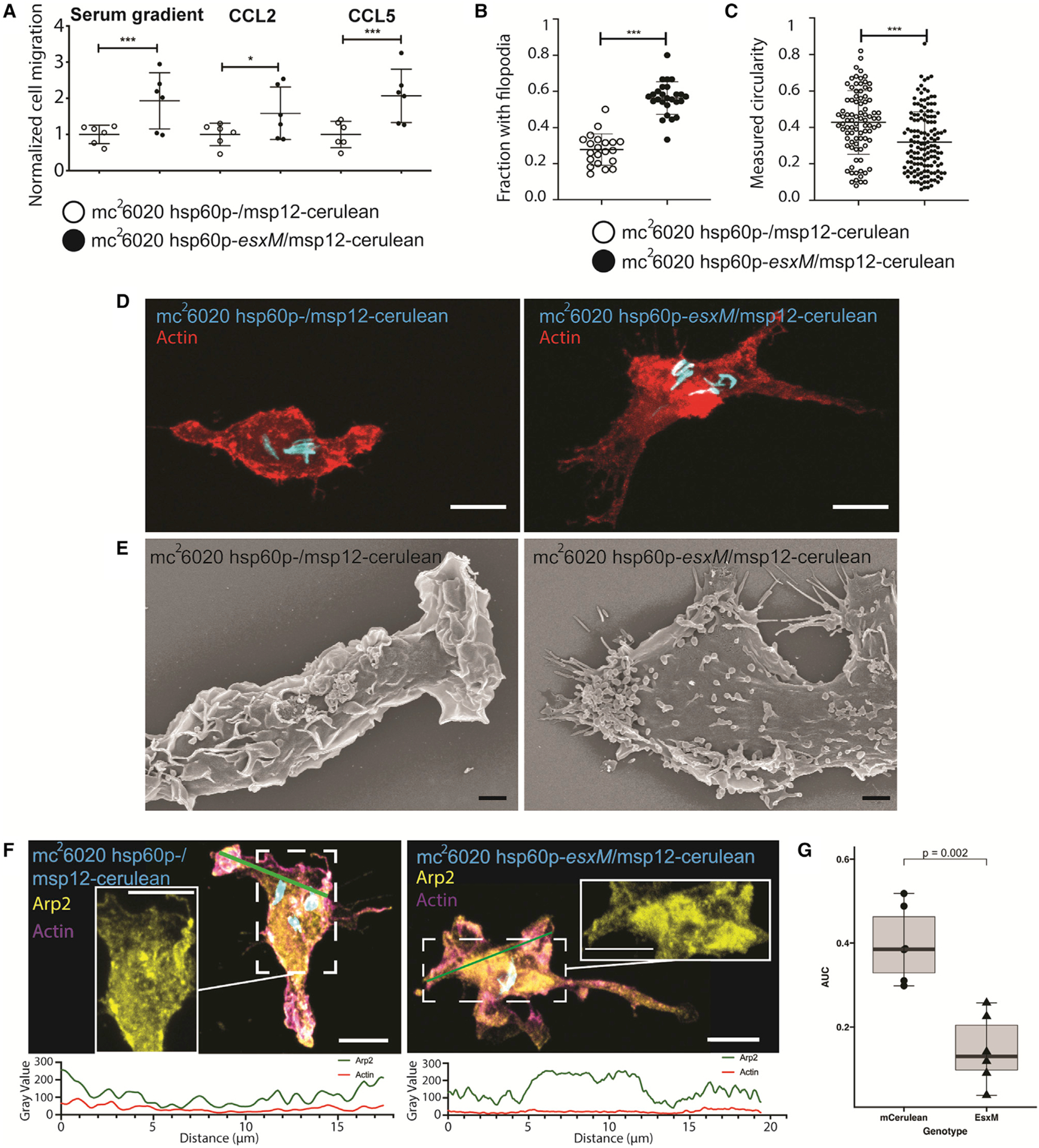

Fig. 5

Reintroduction of ancestral EsxM into modern Mtb reprograms macrophage motility through cytoskeletal alterations

(A) RAW264.7 cell migration during infection with Mtb strains mc²6020 (Mtb₆₀₂₀ msp12:cerulean) or mc²6020 constitutively expressing esxM (Mtb₆₀₂₀ hsp60p:esxM/msp12:cerulean) from an episomal plasmid across transwell membranes in the presence and absence of chemokine. Mean ± SD shown. One-way ANOVA with Bonferroni’s correction.

(B) Quantitation of the presence of filopodia on BLaER1 cells infected with Mtb₆₀₂₀ msp12:cerulean or Mtb₆₀₂₀ hsp60p:esxM/msp12:cerulean. Two-tailed paired Student’s t test, mean ± SD shown.

(C) Measured circularity of BLaER1 cells infected with Mtb₆₀₂₀ msp12:cerulean or Mtb₆₀₂₀ hsp60p:esxM/msp12:cerulean.

(D) BLaER1 cells infected with Mtb₆₀₂₀ hsp60p∷esxM/msp12:cerulean demonstrate increased filopodia and reduced circularity compared to BLaER1 cells infected with Mtb₆₀₂₀ msp12∷cerulean. Bacteria in cyan and actin in red. Scale bar, 8 μm.

(E) Electron micrographs of BLaER1 cells infected with Mtb₆₀₂₀ hsp60p∷esxM/msp12∷cerulean demonstrate increased filopodia compared to BLaER1 cells infected with Mtb₆₀₂₀ msp12∷cerulean. Scale bar, 2 μm.

(F) BLaER1 cells infected with Mtb₆₀₂₀ msp12∷cerulean demonstrate peripheral localization of Arp2, compared to interior localization of Arp2 in cells infected with Mtb₆₀₂₀ hsp60p∷esxM/msp12∷cerulean. Insets display fluorescence intensity of Arp2 and actin along the green line, with interior localization in Mtb₆₀₂₀ hsp60p∷esxM/msp12∷cerulean infections.

(G) Quantification of Arp2 localization from (F). Plot of the percentage of the area under the curve (AUC) for fluorescence in the Arp2 channel for the interval 0% to 25% of the normalized distance across the longest cell axis normalized to AUC from the middle 50% (25%–75%) of the total cell length. Each data point represents a single cell. Statistics from Student’s t test. Scale bar, 8 μm. *p < 0.05, **p < 0.01, ***p < 0.001.

All images are representative of at least two biologically independent experiments.

See also Figure S4.
