ZFIN Image: Song et al., 2023, Fig 1


Figure Caption

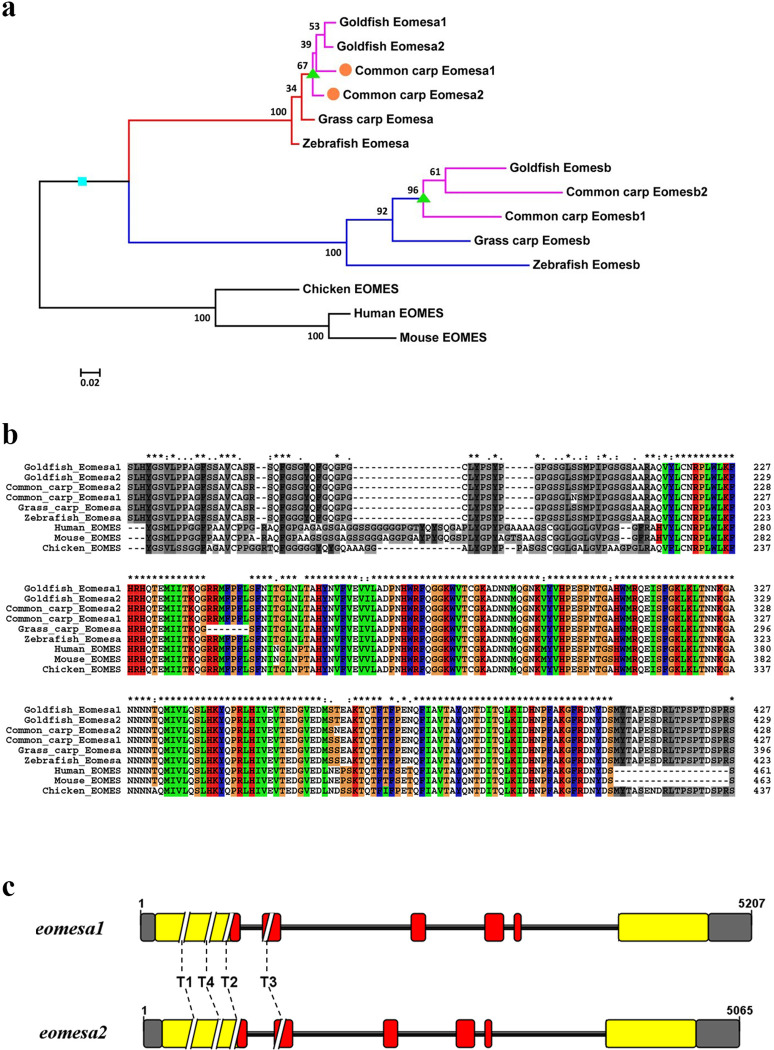

Fig 1 The phylogenetic tree, amino acid alignment of Eomes in vertebrates, and the schematic diagrams of the eomesa gene structure.

(a) The phylogenetic tree was constructed using the ML method with 1,000 bootstraps. The cyan square represents teleost-specific whole genome duplication (TS-WGD, or 3R-WGD) and green triangles represent the fourth-round whole genome duplication (4R-WGD) occurred before the speciation of the common ancestor of common carp and goldfish. (b) Dashes are introduced to improve the alignment. The T-box domain is marked by colored boxes. (c) The gray boxes indicate untranslated regions. Yellow boxes indicate exons, and red boxes indicate exons encoding the T-box domain. The dash lines indicate the target sites.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
