Fig. 7

ID
ZDB-IMAGE-220310-12
Source
Figures for Del Vecchio et al., 2021
Figure Caption

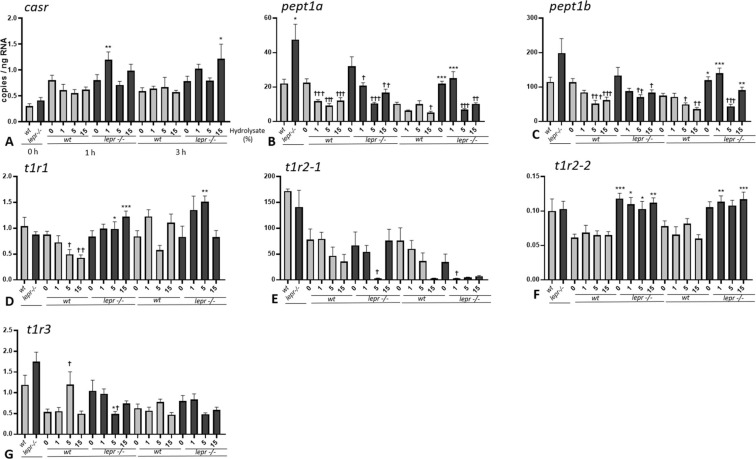

Fig. 7 (A-G). Effect of lactalbumin hydrolysate administration on nutrient-sensing related genes in larval trunk (8 dpf). Values are mean ± SE (n = 8). Differences in tube-feeding test with respect to the values on the 0% hydrolysate group (indicated by †) within each zebrafish line (lepr−/−or wt) were assessed by one-way ANOVA. Differences between the lines at each sampling time (indicated by *) were assessed by two-way ANOVA. Two-way ANOVA shows no significant effect of concentration [F (3, 53) = 2.292; p > 0.05] but significant effect of genotype [F (1, 53) = 14.30; p < 0.0001] at 1 h, and no significant effect of concentration [F (3, 54) = 0.9335; p > 0.05] but significant effect of genotype [F (1, 54) = 11.70; p < 0.01] at 3 h for casr; significant effects of concentration [F (3, 56) = 12. 14; p < 0.0001] and genotype [F (1, 56) = 7.005; p < 0.05] at 1 h and significant effects of concentration [F (3, 56) = 13.92; p < 0.0001] and genotype [F (1, 56) = 35.26; p < 0.0001] at 3 h for pept1a; significant effect of concentration [F (3, 56) = 10.91; p < 0.0001], but not genotype [F (1, 56) = 3.658; p > 0.05] at 1 h and significant effects of concentration [F (3, 56) = 20.15; p < 0.0001] and genotype [F (1, 56) = 42.18; p < 0.0001] at 3 h for pept1b; no significant effect of concentration [F (3, 56) = 0.5851; p > 0.05], but significant effect of genotype [F (1, 56) = 26.76; p < 0.0001] at 1 h and no significant effects of concentration [F (3, 55) = 2.728; p > 0.05] and genotype [F (1, 55) = 2.754; p > 0.05] at 3 h for t1r1; no significant effects of concentration [F (3, 52) = 2.435; p > 0.05] and genotype [F (1, 52) = 0.5828; p > 0.05] at 1 h and significant effects of concentration [F (3, 49) = 3.988; p < 0.05] and genotype [F (1, 49) = 8.861; p < 0.01] at 3 h for t1r2-1; no significant effect of concentration [F (3, 56) = 0.2170; p > 0.05] but significant effect of genotype [F (1, 56) = 64.26; p < 0.0001] at 1 h and no significant effect of concentration [F (3, 54) = 0.1986; p > 0.05] but significant effect of genotype [F (1, 54) = 43.93; p < 0.0001] at 3 h for t1r2-2; no significant effects of concentration [F (3, 53) = 0.7686; p > 0.05] and genotype [F (1, 53) = 1.129; p > 0.05] at 1 h and no significant effects of concentration [F (3, 55) = 1.748; p > 0.05] and genotype [F (1, 55) = 1.063; p > 0.05] at 3 h for t1r3. A Dunnett’s multiple comparison test for one-way ANOVA and a post-hoc Turkey’s multiple comparison were used to assess for specific pairwise differences (*, † = p < 0.05; **, †† = p < 0.01 and ***, ††† = p < 0.001).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Gen. Comp. Endocrinol.
