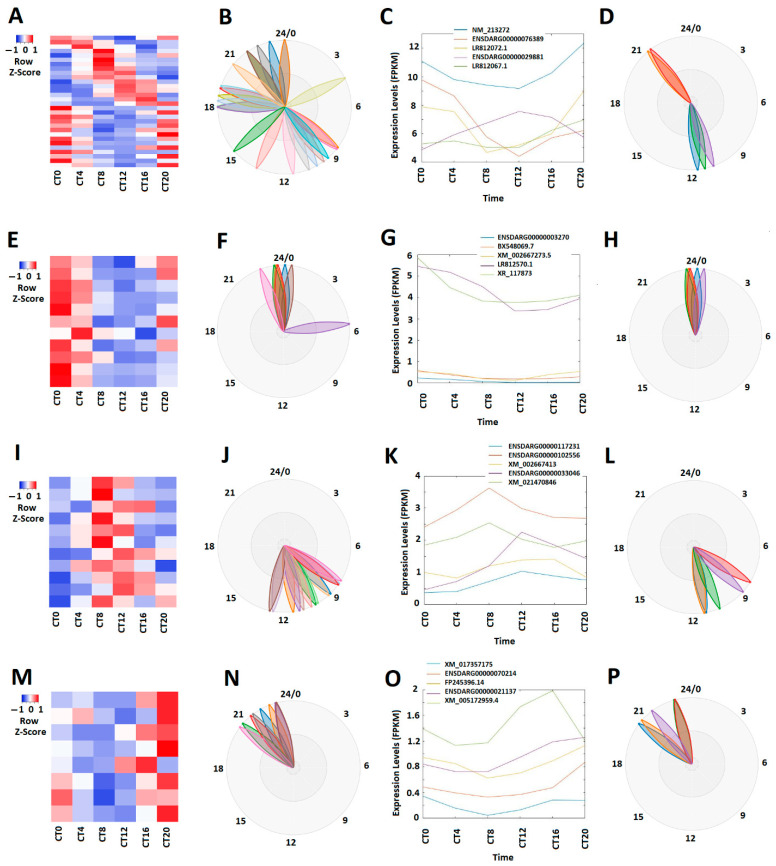

Figure 5
Expression profile analysis of circadianly expressed zebrafish larval lncRNAs coexpressed under both the DD condition and the LL condition. (A–D) Analysis of all the 30 coexpressing larval lncRNAs with expression profiles from DD condition. Heat map (A) and BioDare2 plots (B) of all the 30 coexpressing larval lncRNAs, expression profiles (C) and BioDare2 plots (D) of representative lncRNAs. (E–H) Analysis of the 11 coexpressing larval morning (CT0 and CT4) lncRNAs. Heat map (E) and BioDare2 plots (F) of the 11 larval morning lncRNAs, expression profiles (G) and BioDare2 plots (H) of larval morning representative lncRNAs. (I–L) Analysis of the eight coexpressing larval evening (CT8 and CT12) lncRNAs. Heat map (I) and BioDare2 plots (J) of eight larval evening lncRNAs, expression profiles (K) and BioDare2 plots (L) of larval evening representative lncRNAs. (M–P) Analysis of eight coexpressing larval night (CT16 and CT20) lncRNAs. Heat map (M) and BioDare2 plots (N) of eight larval night lncRNAs, expression profiles (O) and BioDare2 plots (P) of larval night representative lncRNAs.
