Fig. 1.

ID
ZDB-IMAGE-210623-50
Genes
Antibodies
Source
Figures for Falkenberg et al., 2021
Figure Caption

Fig. 1.

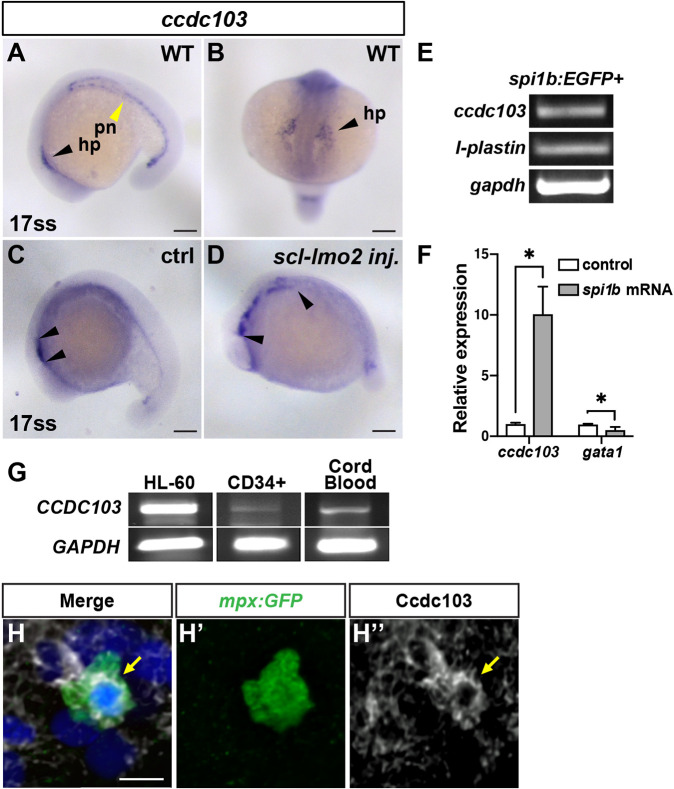

ccdc103 is expressed in myeloid cells. (A,B) ccdc103 expression in a 17-somite stage (ss) wild-type (WT) embryo. hp, hematovascular progenitors (black arrowheads); pn, pronephros (yellow arrowhead). (C,D) The anterior domain of ccdc103 expression (black arrowheads) is expanded in embryos co-injected with scl and lmo2 mRNAs. In A, C and D, images are lateral views with anterior left. In B, image is a dorsal view. (E) RT-PCR for ccdc103, l-plastin (positive control) and gapdh performed on cDNA isolated from fluorescence-activated cell sorting (FACS)-sorted spi1b:EGFP+ zebrafish myeloid progenitor cells. (F) RT-qPCR for ccdc103 and gata1 performed on cDNA isolated from embryos injected with spi1b mRNA. *P<0.05 (two-tailed unpaired Student's t-test). (G) RT-PCR for human CCDC103 was performed with cDNA isolated from HL-60 cells, CD34+/CD38 hematopoietic stem cells (HSCs) and cord blood. (H-H″) Immunohistochemistry (IHC) for Ccdc103 (arrows), GFP and DAPI in an mpx:GFP+ zebrafish neutrophil at 24 hpf. Scale bars: 100 μm (A-D), 10 μm (H).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dis. Model. Mech.
