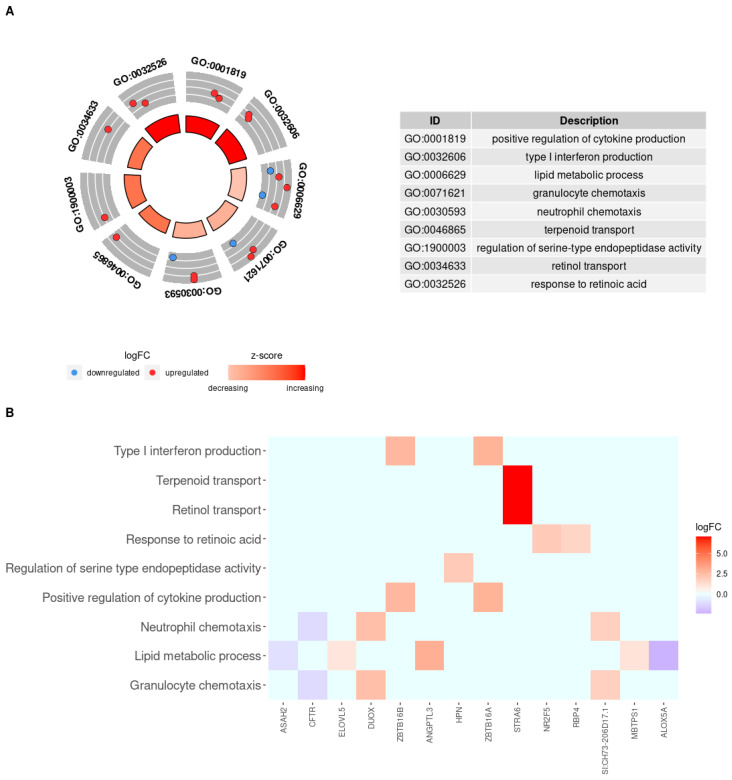

Figure 3 Enriched biological processes increased in HG-50SBM + SPN fish and associated genes. (A) Circle plot of increased biological processes in HG-50SBM + 2SPN fish. The red and blue dots on the gray ring represent the up- or downregulated genes, respectively, that participate in each process. The GO IDs of the biological processes are noted on the outer ring. The inner ring represents the z-score, where the color intensity indicates the degree to which the enriched biological process is increased. The table on the right shows the name of each biological process by GO ID. (B) Heatmap of the 14 genes participating in increased biological processes in HG-50SBM + 2SPN fish. Genes are presented as squares. Red indicates an upregulated gene, while blue indicates a downregulated gene.
