Figure 2

ID

ZDB-IMAGE-210113-11

Genes

sim1a

Source

Figures for Danesin et al., 2021


Figure Caption

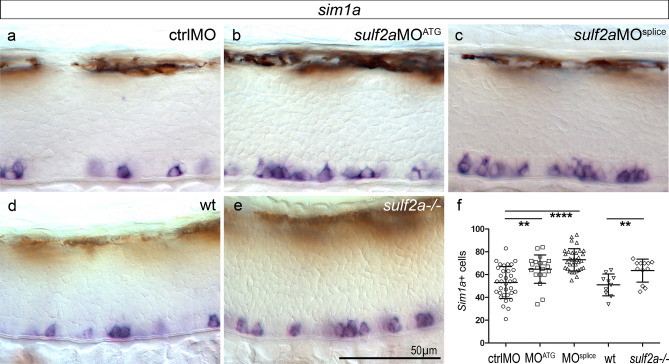

Figure 2

V3 interneuron production is increased upon Sulf2a depletion. Side views of 48 hpf embryos. (a–f) Detection (a–e) and quantification (f) of sim1a-expressing neurons in embryos injected with ctrlMO (a, n = 34), sulf2aMO^ATG (b, n = 20) or sulf2aMO^splice (c, n = 34) and in wild-type (d, n = 10) or sulf2a−/− (e, n = 12) embryos from two independent experiments in each case. Datasets were compared with Mann Whitney’s test (two-tailed). Data are presented as mean number of cells per embryo ± s.d (**p < 0.01, ****p < 0.0001).

Figure Data

Expression / Labeling details

Phenotype details
