Fig. 3

ID
ZDB-IMAGE-200330-3
Genes
Source
Figures for Gallegos et al., 2019
Figure Caption

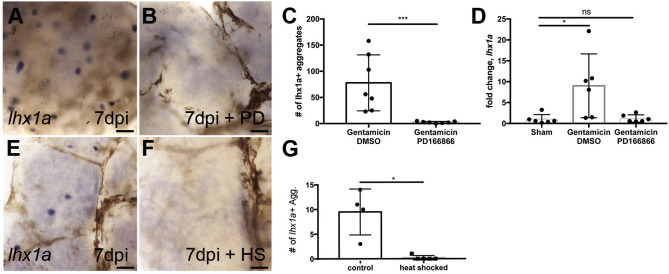

Fig. 3 Inhibition of Fgf signaling prevents new nephron development. (A) Injured zebrafish generate lhx1a ​+ ​nephrogenic aggregates at 7 dpi by whole mount in situ hybridization. (B) Treatment with the FGFR1 inhibitor PD166866 blocks the appearance of lhx1a ​+ ​nephrogenic aggregates in whole mount kidneys. (C) Quantification of lhx1a ​+ ​nephrogenic aggregates in multiple whole mount kidneys demonstrates PD166866 completely blocks kidney regeneration. N ​= ​7 fish per condition. Error bars indicate ±SD. p ​= ​0.01 by Mann-Whitney T-test. (D) qRTPCR quantitation of lhx1a expression shows PD166866 treatment blocks lhx1a expression post-injury. N ​= ​6 fish per condition. Error bars indicate ±SD. * indicates p ​= ​0.02 by Kruskal-Wallis test. (E) Control non-heat shocked Tg(hsp70:dnfgfr1) transgenic fish show lhx1a ​+ ​new nephron aggregates 7 days following gentamicin injury. (F) Heat shock induction of the dominant-negative Fgfr1 receptor blocked the development of lhx1a ​+ ​new nephron aggregates. (G) Quantification of lhx1a ​+ ​nephrogenic aggregates in multiple whole mount kidneys demonstrates that expression of the dominant-negative Fgfr1 receptor completely blocks kidney regeneration. Differences in injury responses (number of nephrogenic aggregates in A vs E) reflect strain dependent differences in sensitivity to gentamicin injury. N ​= ​4 control and N ​= ​5 heat shocked fish. Error bars indicate ±SD. p ​= ​0.03 by Mann-Whitney T-test. In panels A,B,E,F scale bars are 100 ​μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 454(1), Gallegos, T.F., Kamei, C.N., Rohly, M., Drummond, I.A., Fibroblast growth factor signaling mediates progenitor cell aggregation and nephron regeneration in the adult zebrafish kidney, 44-51, Copyright (2019) with permission from Elsevier. Full text @ Dev. Biol.
