Fig. S6

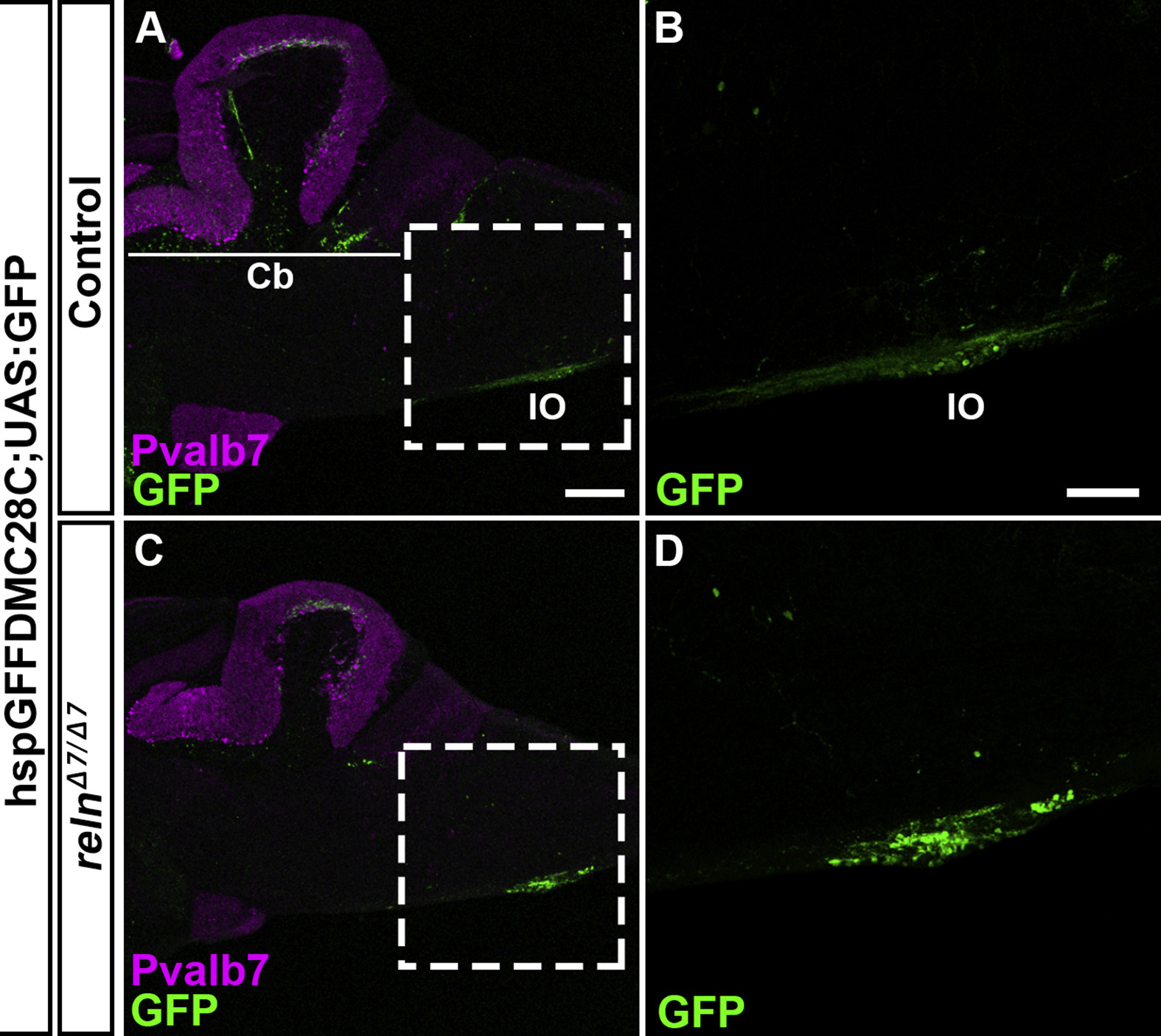

Inferior olivary nuclei (IOs) are not affected in reln mutants. Sagittal section of the brain from adult (90-150-dpf) control (A, B, n= 4) and relnΔ7/Δ7 mutant (C, D, n= 4) fish with hspGFFDM28C; UAS:GFP, which marks the neurons in the IOs and their axons (CFs). (B, D) High magnification images of the boxes in A and C. Typical images are shown. Note that the number and position of the IO neurons were unaffected in the reln mutants. The abbreviations are described in the legend of Fig. 1. Scale bars: 40 μm in A (applies to A, C); 100 μm in B (applies to B, D).
