Figure Caption

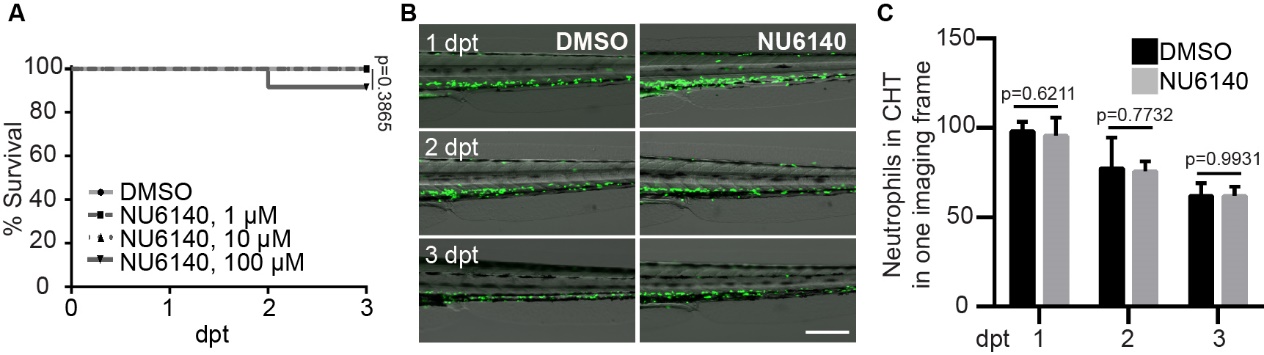

Fig. S3
Cytotoxicity of CDK2 inhibitor NU6140.
(A) Survival of 3 dpf zebrafish embryos treated with indicated doses of NU6140. Survival rates were tallied daily. One representative experiment of three independent experiments (n =20 each group) is shown, Gehan–Breslow–Wilcoxon test. (B, C) Representative images (B) and quantification (C) of neutrophils in the caudal hematopoietic tissue of the 3 dpf embryos from Tg(lyzC:gfp) treated with 100 μM of NU6140 for 3 days. Scale bar: 500 μm. Results are presented as mean ± s.d. of three individual trials, Kruskal–Wallis test.
