Figures for Selland et al., 2018
Figure Caption

Fig. 3

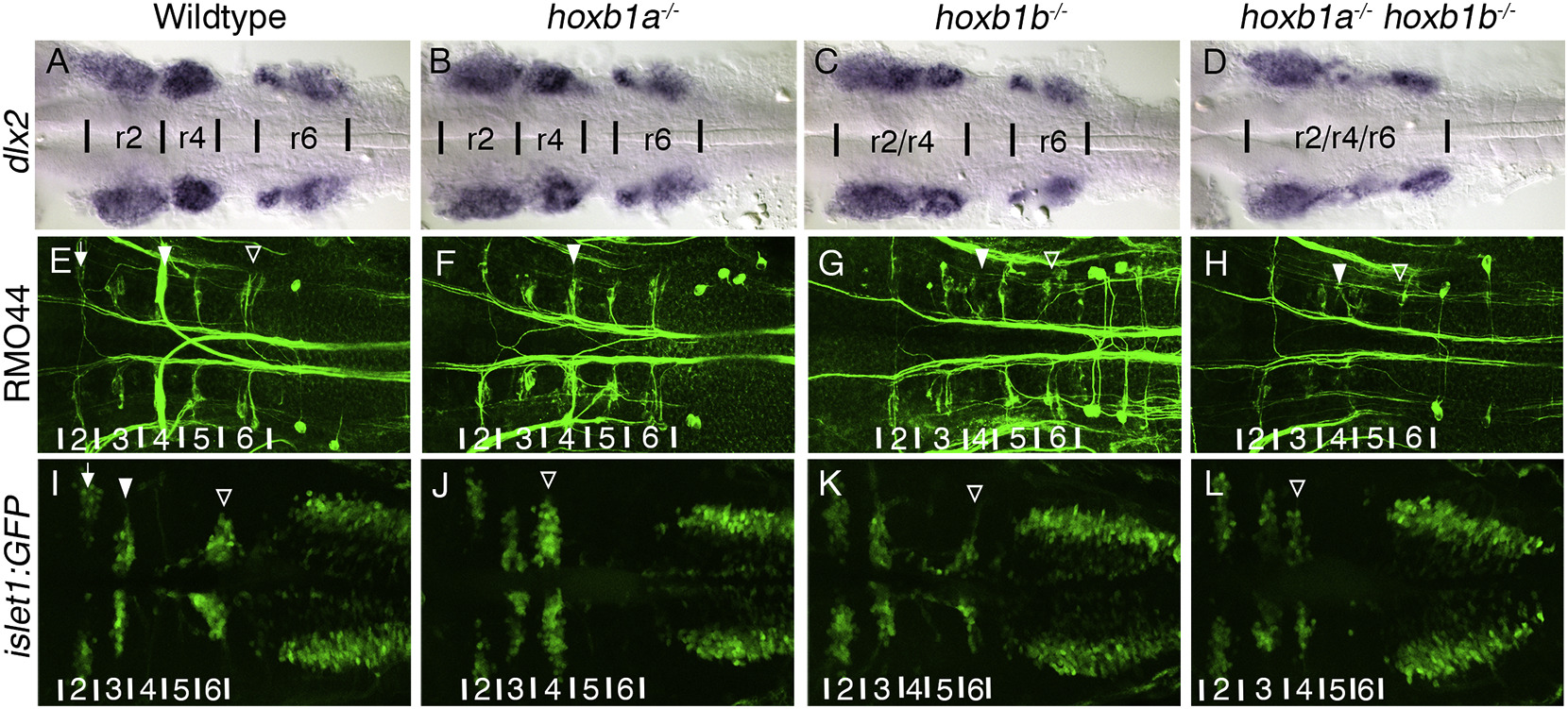

The loss of PG1 hox genes causes defects in both neural crest, and hindbrain associated neuronal populations.

In hoxb1a−/− mutants three neural crest streams exit the hindbrain (B), similar to wildtype (A). The r2 and r4 streams are fused in hoxb1b−/− mutants (9/9 embryos) (C) and all three neural crest streams are less distinct in hoxb1a−/−;hoxb1b−/− mutants, with the r4 stream being reduced (8/9 embryos) (D). The Rol2 neurons (r2) (arrow), Mauthner neurons (r4) (filled arrowhead), and Mid3cm neurons (r6) (empty arrowhead) are reticulospinal neurons (labeled by RMO44) that project contralaterally across the midline (E). In hoxb1a−/− mutants the Mauthner neuron (r4) is lost (filled arrowhead), however there is a neuron resembling Rol2 in its position (10/10 embryos)(F). In hoxb1b−/− (12/12 embryos) (G) and hoxb1a−/−;hoxb1b−/− (3/3 embryos)(H) mutants, the Mauthner (filled arrowhead) and the Mid3cm (empty arrowhead) neurons are absent. Visualized with the transgenic islet1:GFP line, trigeminal BMNs differentiate to form two clusters in r2 (arrow) and r3 (filled arrowhead), the facial BMNs are born in r4 and subsequently their cell bodies migrate posteriorly to r6/7 and then laterally to their final positions (empty arrowhead) (I). The facial BMNs fail to migrate posteriorly in hoxb1a−/− mutants (11/11 embryos)(J, empty arrowhead). Hoxb1b−/− mutants specify fewer facial BMNs, however they migrate appropriately (12/12 embryos) (K, empty arrowhead). In hoxb1a−/−;hoxb1b−/− mutants there are fewer facial BMNs which fail to migrate posteriorly (5/5 embryos)(L, empty arrowhead). All embryos have been genotyped for hoxb1asa1191 and hoxb1bua1006. All images are dorsal views, anterior, to the left, (A–D) 22hpf, (E–L) 48hpf.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 150, Selland, L.G., Koch, S., Laraque, M., Waskiewicz, A.J., Coordinate regulation of retinoic acid synthesis by pbx genes and fibroblast growth factor signaling by hoxb1b is required for hindbrain patterning and development, 28-41, Copyright (2018) with permission from Elsevier. Full text @ Mech. Dev.
