Figures for Nichols et al., 2016


Figure Caption/Comments:

Fig. 3

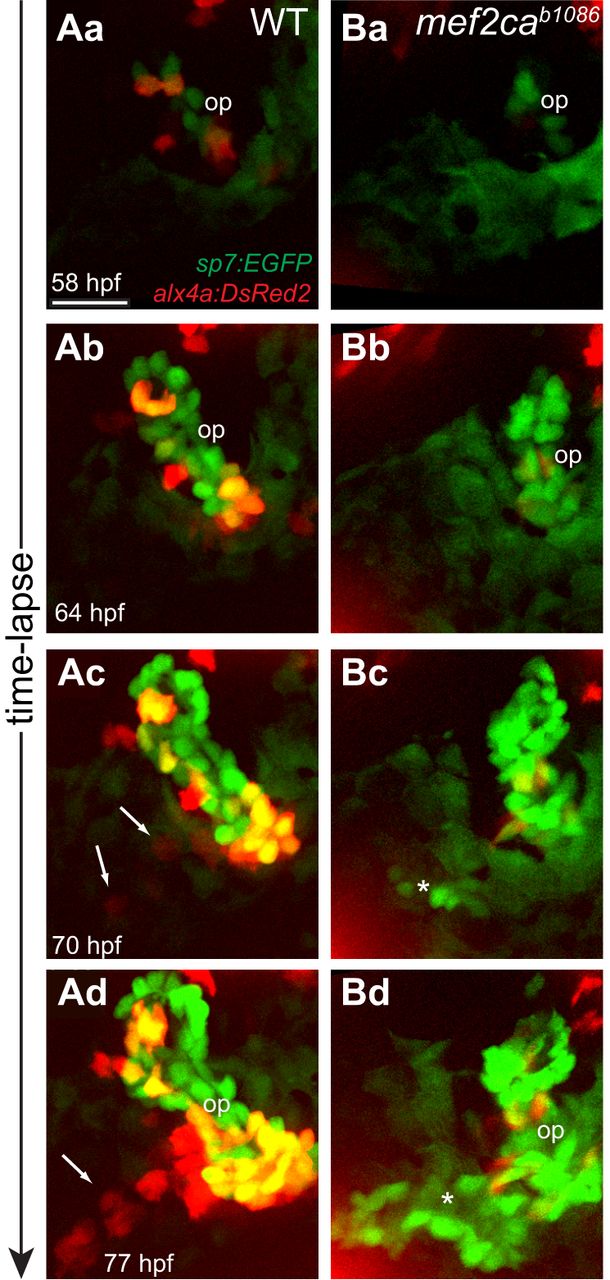

Ectopic bone cells appear in place of ligament cells in mef2cab1086. (A,B) Excerpts from a time-lapse movie imaging sp7:EGFP (green) and alx4a:DsRed2 (red) transgenic larvae. Arrows mark ligament cells, asterisks label ectopic bone cells. Background green fluorescence of the skin is visible in some images. Lateral views, anterior is towards the left and dorsal is up. op, opercle; WT, wild type. Scale bar: 10 µm.
