Figure Caption

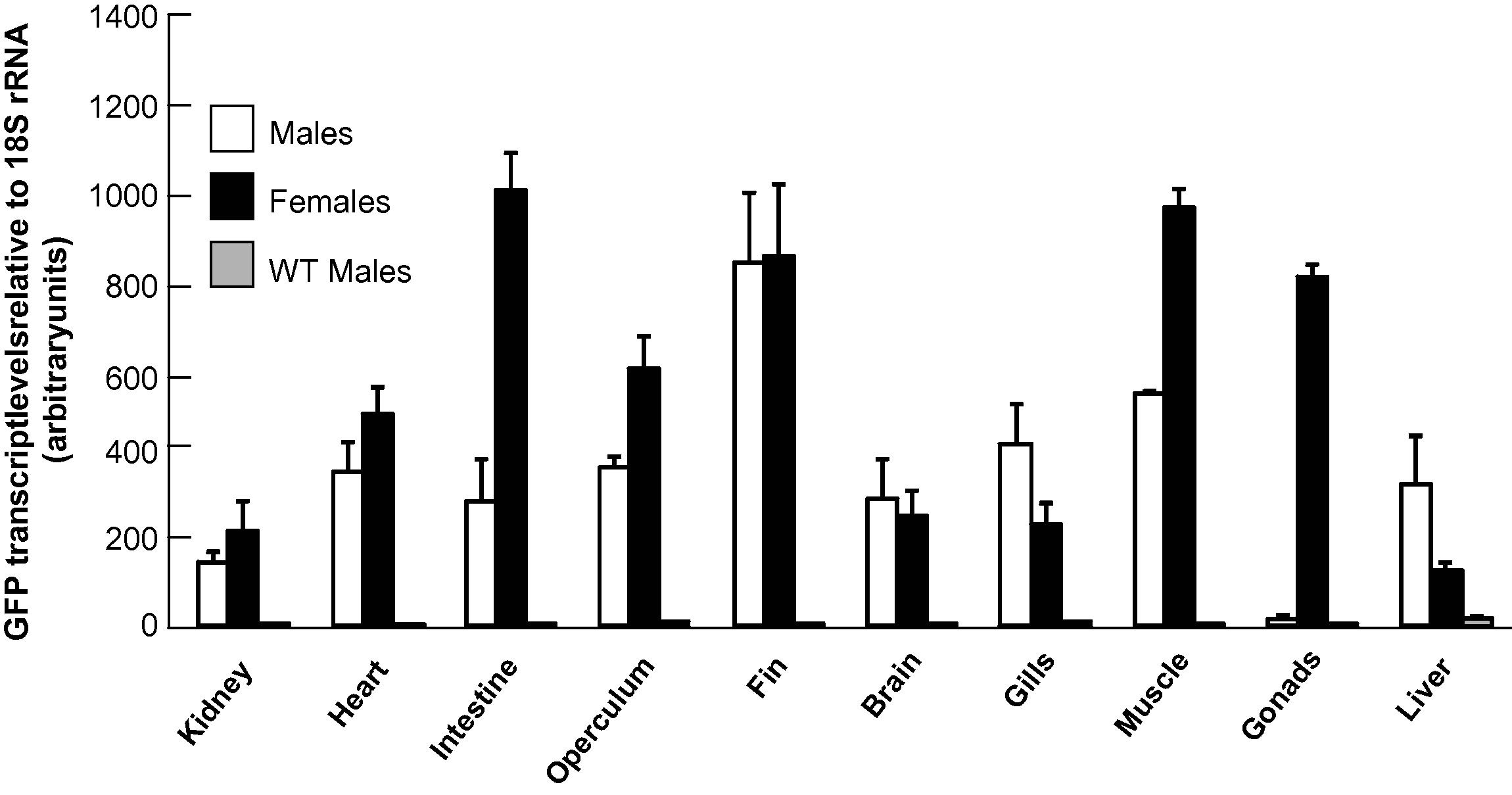

Fig. 4
Tissue distribution of the gfp transcripts in adult zebrafish. Transgene expression was assessed by quantitative real time PCR on a panel of tissues collected from male and female adult transgenic zebrafish. Wild type (WT) male were included as a negative reference. gfp mRNA abundance was normalized to 18S rRNA. Transgene expression was detected in all tissues examined with the exception of the testis.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Gene expression patterns : GEP, 13(3-4), Mella-Alvarado, V., Gautier, A., Le Gac, F., and Lareyre, J.J., Tissue and cell-specific transcriptional activity of the human cytomegalovirus immediate early gene promoter (UL123) in zebrafish, 91-103, Copyright (2013) with permission from Elsevier. Full text @ Gene Expr. Patterns
