Fig. 2

Elevated Levels of klf2 mRNA Cause Morphogenetic Defects in Zebrafish ccm Mutants

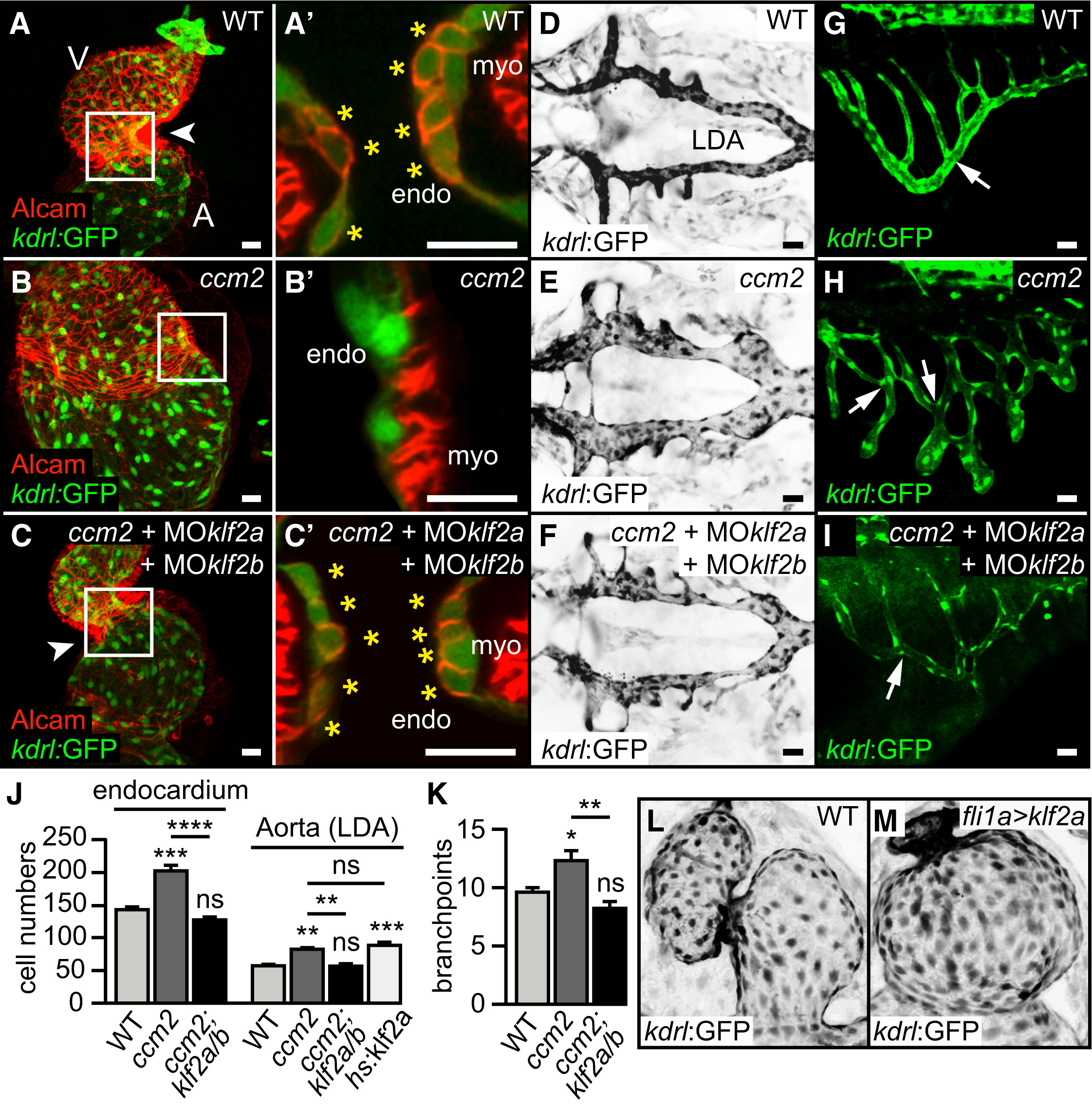

(A–I) Rescue of cardiac malformations, LDA defects, and SIV defects in zebrafish ccm2m201 mutants (B, B′, E, and H) by targeting klf2a/b with MOs (C, C′, F, and I). (A–C) Shown are hearts of different genotypes at 48 hrpf or (A′, B′, and C′) details with single confocal plane sections of the atrioventricular canal (AVC) region (arrowheads, white box). Endocardial cushion cells are marked by Tg(kdrl:GFP)s843 and Alcam staining (asterisks). (D–F) Dorsal views of the LDA marked by Tg(kdrl:GFP)s843 (inverted images) in different genotypes at 48 hrpf. (G–I) Side view of the SIV marked by Tg(kdrl:GFP)s843 in different genotypes at 72 hrpf. Vessel branch point defects (arrows) within the SIV are reduced by targeting klf2a/b in ccm2m201 mutants (H and I).

(J) Endocardial and LDA cell numbers are elevated in ccm2m201 mutants at 48 hrpf, as well as upon overexpression of klf2a from a heat-shock-inducible promoter.

(K) Quantifications of the number of branch points of the SIV in different genotypes at 72 hrpf.

(L and M) Endothelial overexpression of klf2a in Tg(fli1ep:Gal4FF)ubs2; Tg(UAS:klf2a)ig1–3; Tg(kdrl:GFP)s843 transgenic embryos is sufficient to phenocopy the ccm2m201 mutant cardiac ballooning phenotype. Endo, endocardium; myo, myocardium; A, atrium; V, ventricle. Scale bars, 25 µm. Statistical data are means and SEM; ns, not significant; p < 0.05; p < 0.01; p < 0.001; p < 0.0001; see Supplemental Experimental Procedures for details about statistical data analysis.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32, Renz, M., Otten, C., Faurobert, E., Rudolph, F., Zhu, Y., Boulday, G., Duchene, J., Mickoleit, M., Dietrich, A.C., Ramspacher, C., Steed, E., Manet-Dupé, S., Benz, A., Hassel, D., Vermot, J., Huisken, J., Tournier-Lasserve, E., Felbor, U., Sure, U., Albiges-Rizo, C., Abdelilah-Seyfried, S., Regulation of β1 Integrin-Klf2-Mediated Angiogenesis by CCM Proteins, 181-190, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
