Fig. 3

ID
ZDB-IMAGE-150317-20
Genes
Source
Figures for McKee et al., 2014
Figure Caption

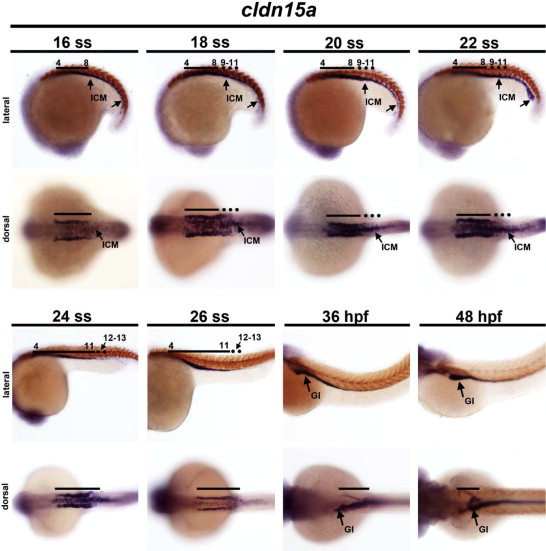

Fig. 3 Expression of cldn15a transcripts during nephrogenesis. Whole mount in situ hybridization analysis for clnd15a (purple) and smyhc1 (red) at the 16–28 somite stage (ss), 36 and 48 hours post fertilization (hpf) in wild-type embryos. Embryos are shown in lateral views with anterior to the left. Black lines (strong expression) and dotted lines (faint expression) indicated transcript domains and comparative levels, and numbers correspond to the somite position of nephron cells. Abbreviations: inner cell mass (ICM) denotes primitive blood, and gastrointestinal tract (GI). For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.
