Figure Caption
Fig. S5

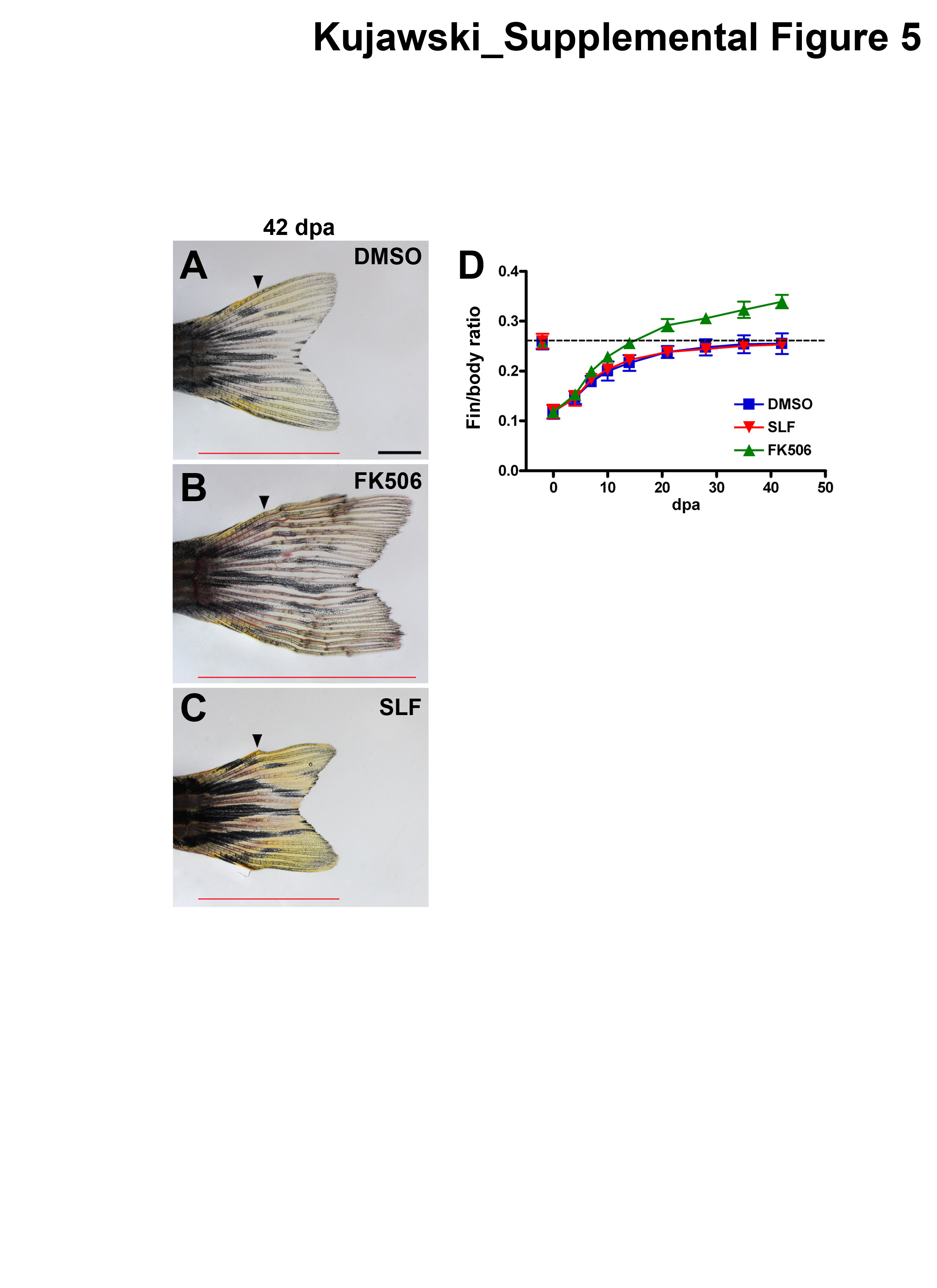

Inhibition of FKBPs does not reproduce FK506-enhanced regenerative outgrowth phenotype, related to Figure 5. (A) Regenerating DMSO-treated caudal fin 42 dpa. (B) Regenerating FK506-treated caudal fin 42 dpa. (C) Regenerating SLF-treated caudal fin 42 dpa. (D) Graph of the fin-length-to-body-length measurements over time from caudal fins of the different treatment groups. Data represented as mean +/- SD. In (A-C), arrowheads denote the level of amputation and red lines present the length of the whole fin. Scale bar (AC) is 2 mm.
