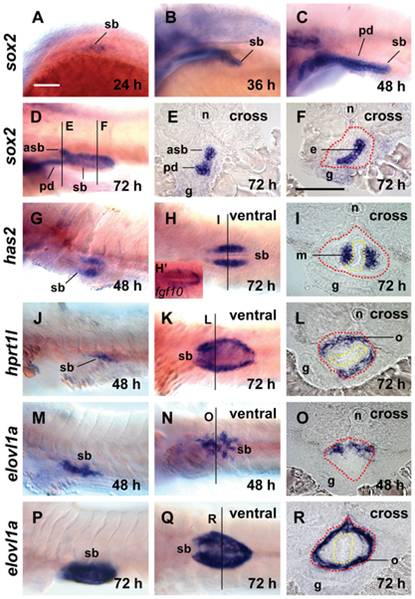

Fig. 1 Expression of new maker genes in different tissue layers of the zebrafish swimbladder as assayed by WISH.
