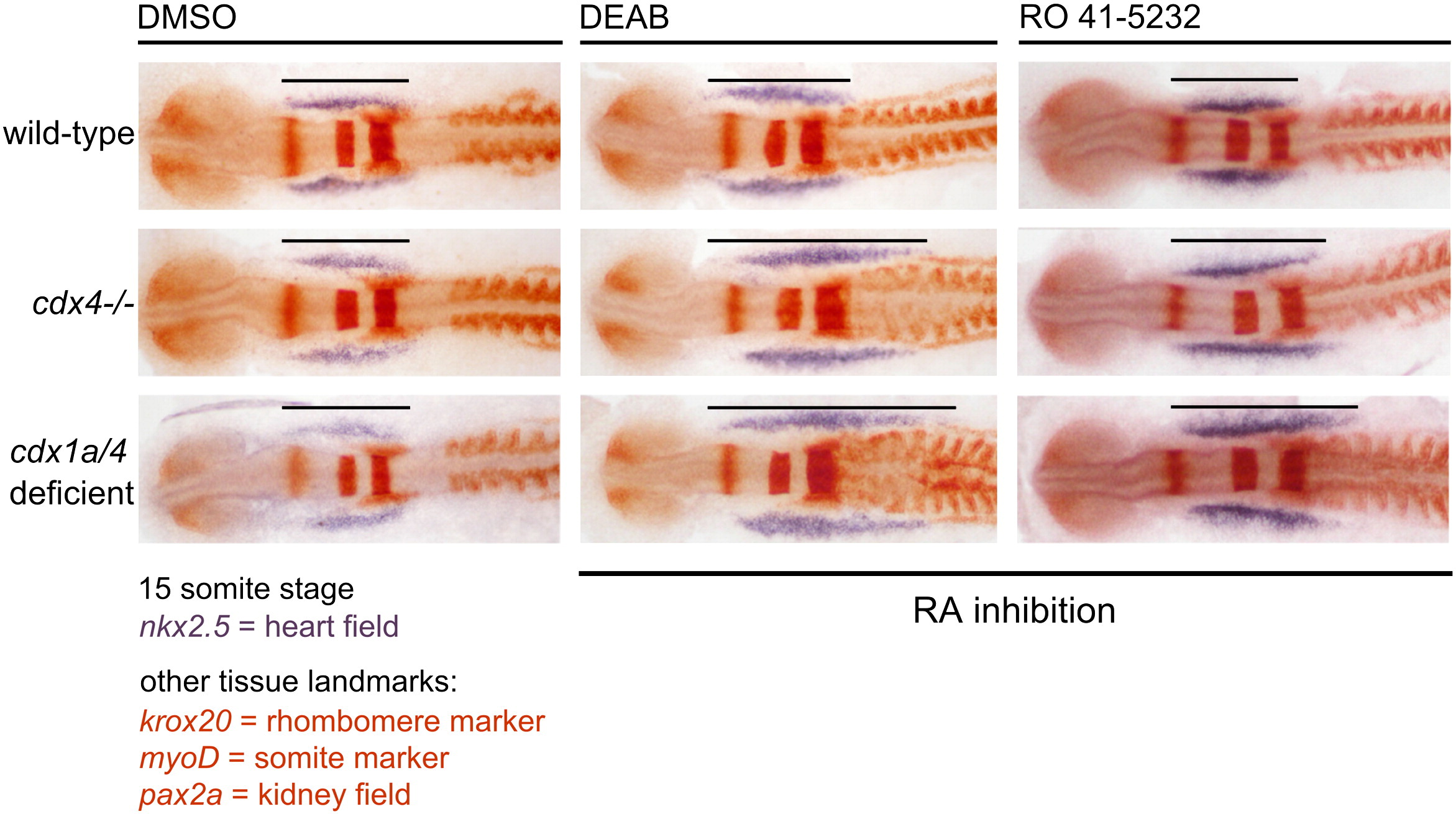

Fig. 6 Excessive tbx5 positive anterior-lateral plate mesoderm formed in cdx-deficient embryos requires additional inhibition of the retinoic acid pathway in order to adopt cardiac fate and form nkx2.5 expressing cardiac cells. Shown are wildtype, cdx4-/- and cdx1/4 deficient embryos analyzed at 15-somite stage after treatment with the retinoic acid inhibitors DEAB, Ro-41-5253, or DMSO (vehicle) as a control. cdx-dose-dependent effects are observed with both inhibitors.
