Fig. 5

ID
ZDB-IMAGE-110207-24
Genes
Source
Figures for Du et al., 2011
Figure Caption

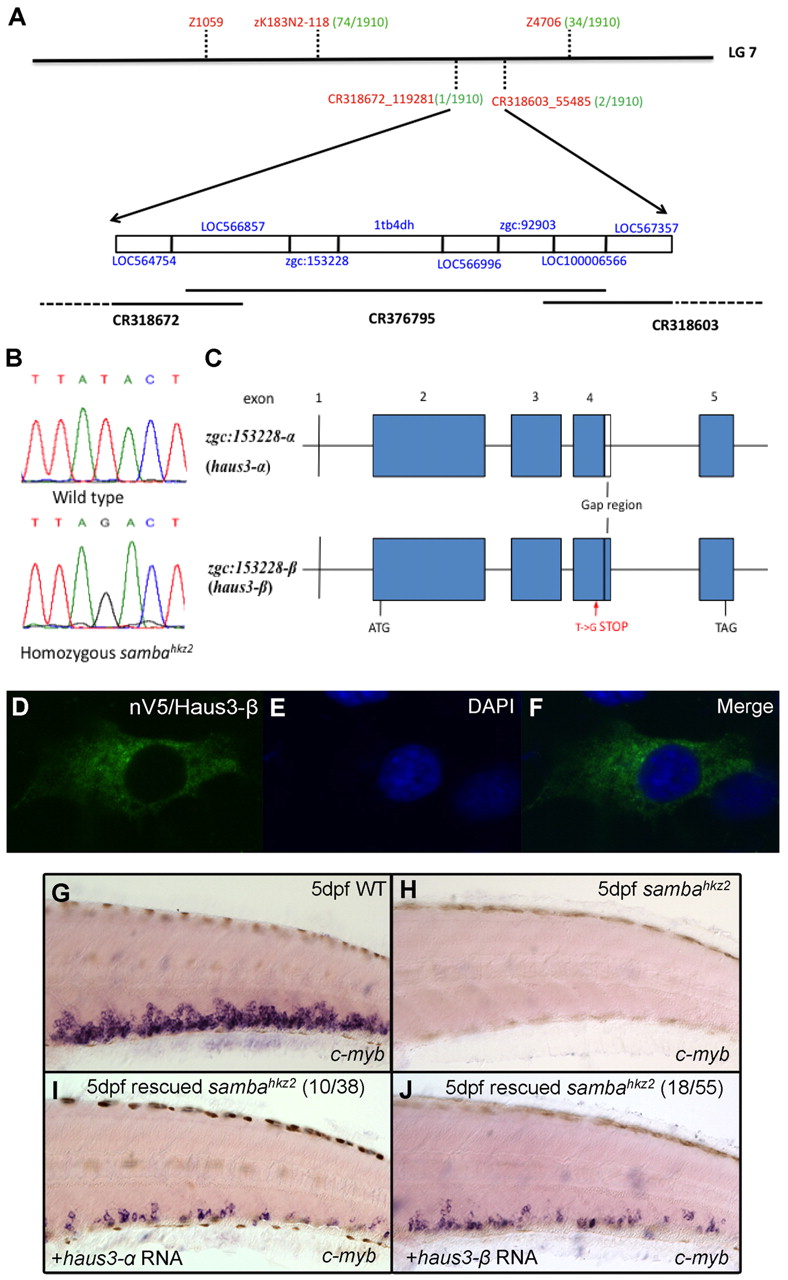

Fig. 5 The sambahkz2 mutation is mapped to the haus3 gene in linkage group 7 of the zebrafish genome. (A) Positional cloning information. The sambahkz2 mutation is mapped to a three-overlapping-BAC region between markers CR318672_119281 and CR318603_55485 in LG7. This region contains eight candidate genes (blue). The simple sequence length polymorphism markers (SSLP) or single nucleotide polymorphism (SNP) markers used in mapping are labeled in red with their respective recombinants number (out of a total of 1910 homozygous sambahkz2 embryos) in green. (B) Sequencing results showing a nonsense mutation (a T-to-G transition) in haus3 (zgc:153228) gene. (C) Gene structure of haus3 (zgc:153228). Gap region indicates the absence of 48 bp in haus3-α (zgc:153228-α). (D-F) Immunohistochemical staining with the anti-V5 monoclonal antibody on pcDNA3.1/nV5-haus3-β-transfected cos-7 cells and DAPI staining of the same transfected cells. (G-J) In vitro synthesized full-length haus3 RNA rescues the mutant phenotype. WISH of cmyb expression in wild type (G), uninjected sambahkz2-/- mutant control (H) and sambahkz2-/- mutant embryos injected with either wild-type haus3-α (I) or haus3-β RNA (J). The phenotype seen in I and J is representative of 10 out of 38 and 18 out of 55 mutant embryos observed, as indicated.

Figure Data
