Fig. 1

ID
ZDB-IMAGE-100806-157
Antibodies
Source
Figures for Francescatto et al., 2010
Figure Caption

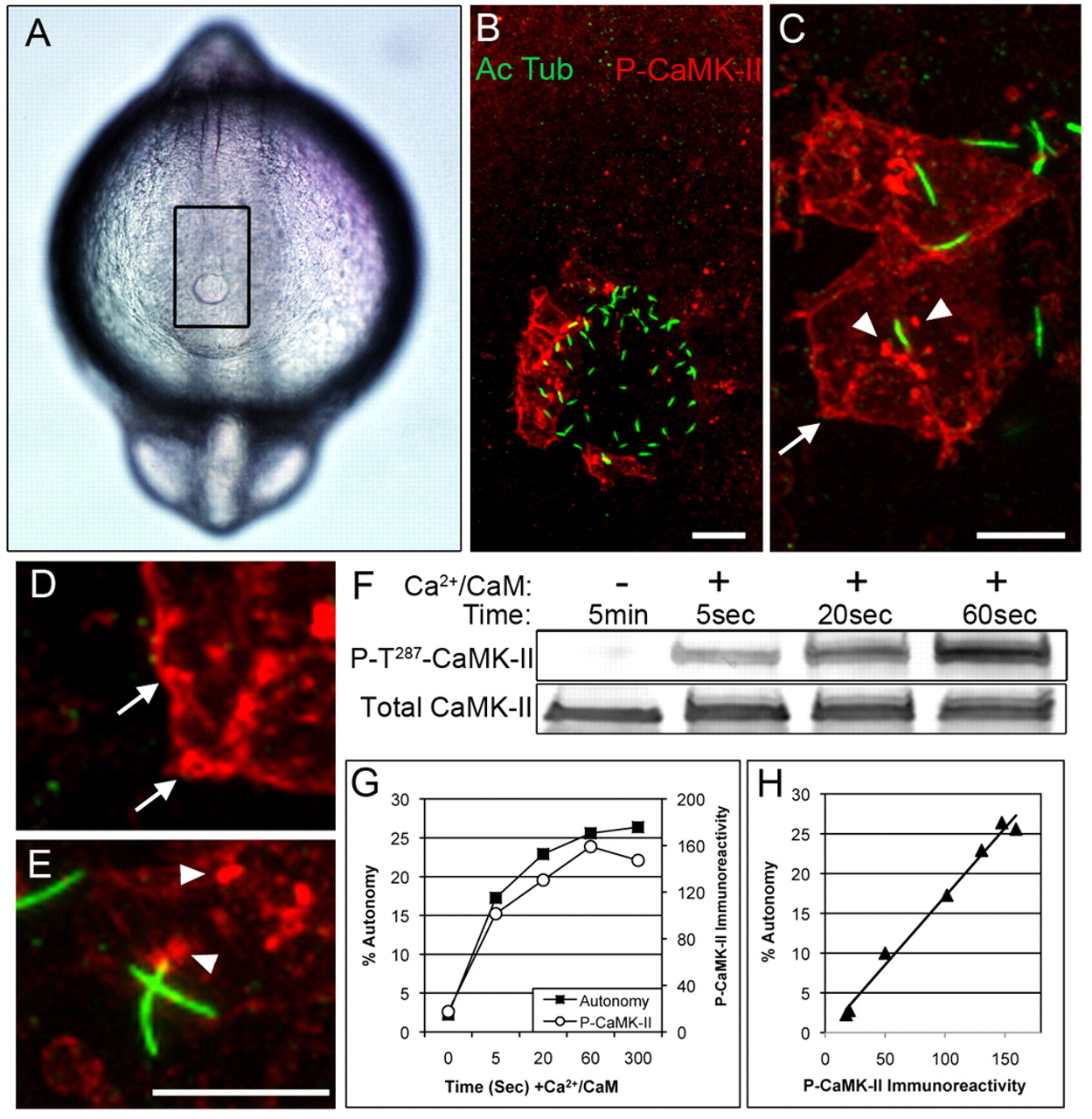

Fig. 1 CaMK-II is activated on the left side of Kupffer′s vesicle (KV). (A) Dorsal view of a 12-somite embryo, shows the KV (at the bottom of outlined rectangle) by differential interference contrast microscopy. (B) Confocal immunofluorescence of rectangular region in A using anti-acetylated α-tubulin (green, Alexa 488) to localize cilia and anti-P-T287 CaMK-II (red, Alexa 568) to localize activated CaMK-II in cells on the left side of the KV. (C-E) Higher magnification reveals activated CaMK-II along the cell cortex (arrows) and intracellular clusters (arrowheads), which occasionally colocalize with the base of cilia. Scale bars 10 μm. (F-H) The anti-P-T287 antibody reacts only with activated CaMK-II, as demonstrated by incubating ectopically expressed zebrafish β1K CaMK-II with Ca2+/CaM for the indicated times and then assessing (F) immunoreactivity with anti-P-T287 CaMK-II and an antibody reactive with total CaMK-II. (G) CaMK-II autonomy, measured by peptide assay, and P-T287 immunoreactivity for a representative experiment. (H) When values from four experimental replicates were compiled and plotted against each other, P-T287 CaMK-II immunoreactivity (blot density) was proportional to autonomy.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
