ZFIN Image: Alvarez et al., 2009, Fig. 6


Figure Caption

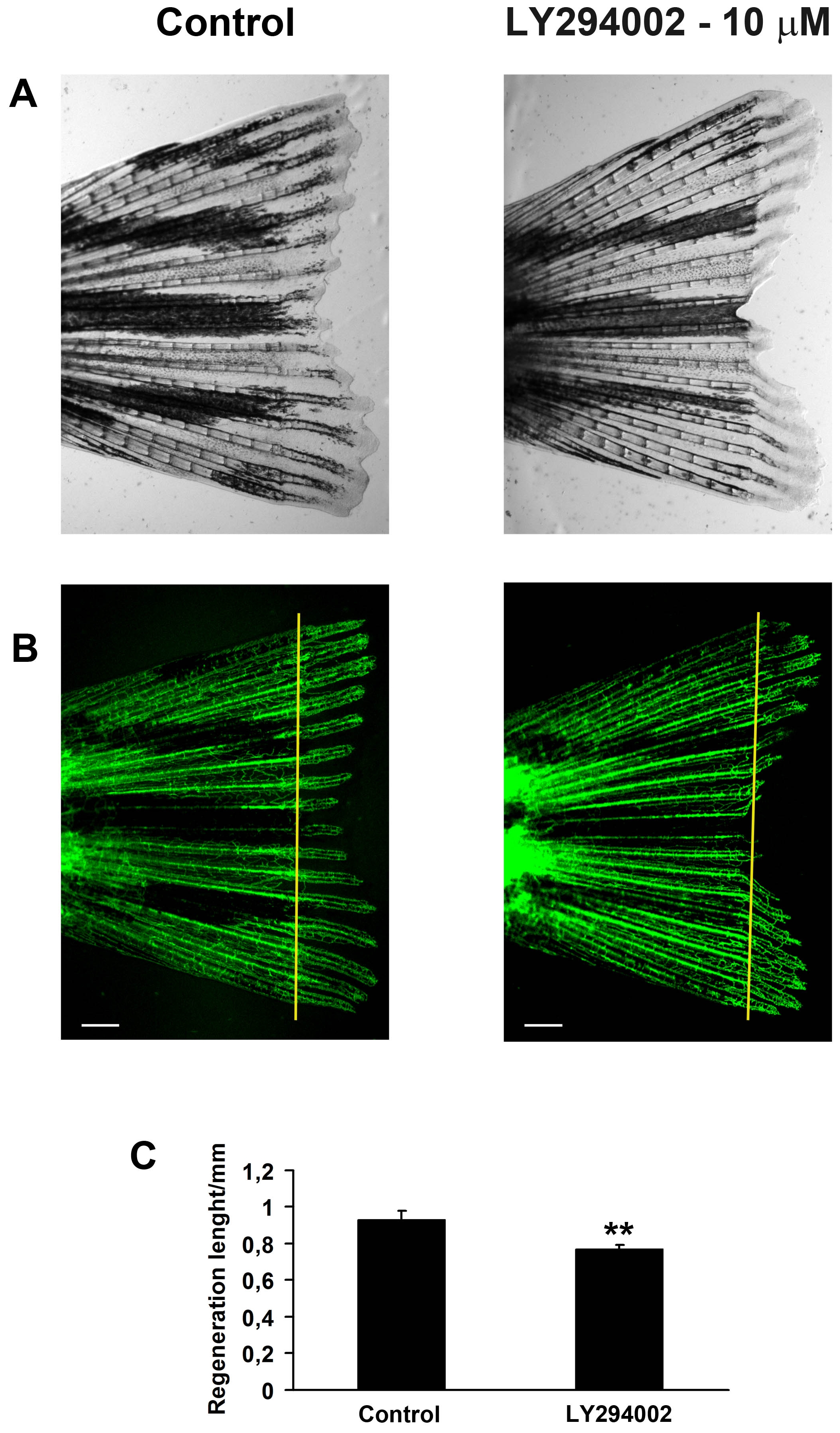

Fig. 6 LY294002 attenuates Regenerative Angiogenesis in Adult Zebrafish.

The caudal fins of adult Tg(fli1:EGFP) zebrafish were amputated and left to regenerate in either tank water or tank water supplemented with 10 μM LY294002. Bight field micrographs (A) or fluorescent micrographs (B) of representative fins at 9 days post-amputation are shown. The maximal, average blood vessel length in the regenerated tissue was quantified at the third fin ray in either fin lobe and the results are depicted in (C). LY294002 significantly inhibits regenerative angiogenesis in the tail fin (** p<0.01, t-test). Yellow lines in B indicate the amputation plane. n = 8 fin rays in 4 fish. Scale bars = 500 μm.

Figure Data

Phenotype details
