Fig. 5

ID
ZDB-IMAGE-071015-10
Genes
Source
Figures for Stickney et al., 2007
Figure Caption

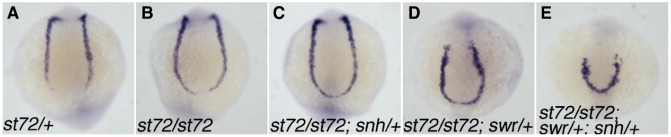

Fig. 5 Blood fate is first expanded and then reduced upon progressive loss of BMP activity. gata1 expression at 10 somites in embryos from a cross between a triple bmp heterozygote and a bmp4st72 heterozygote. (A) Wild-type phenotype exhibited by a bmp4st72 heterozygote. Expansion of the gata1 expression domain ventral to the tailbud is evident in a bmp4st72 homozygote (B) and a bmp4st72/bmp4st72; snhty68a/+ embryo (C). Reduction of the gata1 expression domain is observed upon further reduction of BMP, as in these bmp4st72/bmp4st72; swrta72/+ (D) and bmp4st72/bmp4st72; snhty68a/+; swrta72/+ (E) embryos, although ectopic gata1 expression ventral to the tailbud is still apparent.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 310(1), Stickney, H.L., Imai, Y., Draper, B., Moens, C. and Talbot, W.S., Zebrafish bmp4 functions during late gastrulation to specify ventroposterior cell fates, 71-84, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
