Figure 6

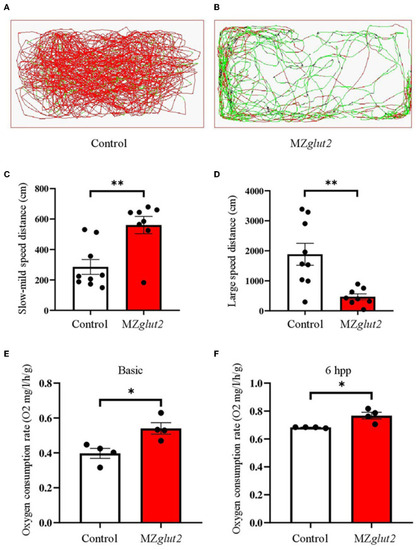

glut2-deletion resulted in slower movement activity but increased oxygen consumption in MZglut2 fish. (A, B) Pathway monitoring of the control and MZglut2 fish continued for 5 min at 3 mpf. (C, D) The distance covered with slow-mild speed or large speed of the control fish (n = 9) and MZglut2 (n = 8). Slow-mild speed (0–2 cm/s) and large speed (> 2 cm/s) of the control and MZglut2 fish. (E, F) The oxygen consumption rate of basic level and 6 hpp in the control and MZglut2 fish at 3 mpf (n = 4). A two-tailed unpaired t-test was used to detect significance. **P < 0.01. *P < 0.05.
