Figure 2

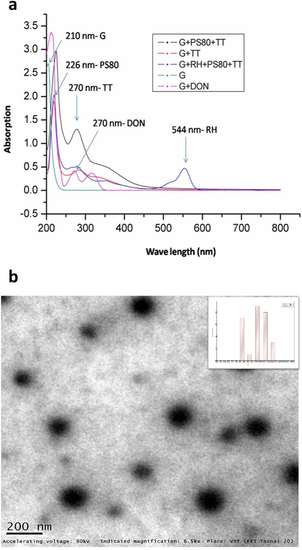

a. UV-vis spectrum of the NG with or without conjugated components shows peaks respective of the components. b. TEM image of TT loaded NG. The TT loaded NGs diameter increased from 80 nm to 120 nm and were spherical in shape with a smooth surface and good dispersion.
