FIGURE

Fig. s6

ID

ZDB-FIG-220304-59

Publication

Aman et al., 2021 - Thyroid hormone regulates abrupt skin morphogenesis during zebrafish postembryonic development

Other Figures

All Figure Page

Back to All Figure Page

Fig. s6

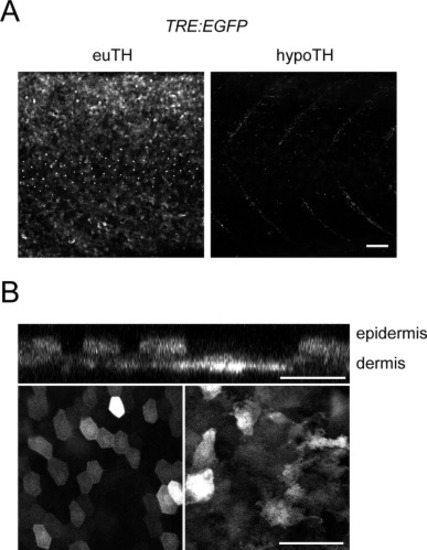

Expression of synthetic TH activity reporter in skin. (A)The synthetic TH reporter TRE-bglob:EGFP was broadly expressed in skin of euTH, but not hypoTH individuals (n=8 each condition). Weak fluorescence evident along the deeper horizontal myosepta in hypoTH represents TH independent expression of the reporter. (B) Higher magnification images showing reporter expression in superficial epidermis and deeper dermis in original planes of image capture (lower left and right, respectively) and in an orthogonal projection (above). All images were captured in 8.6 SSL larvae just prior to onset of squamation and before scales are overtly visible (Aman et al., 2018; Parichy et al., 2009). Scale bars, 100 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 477, Aman, A.J., Kim, M., Saunders, L.M., Parichy, D.M., Thyroid hormone regulates abrupt skin morphogenesis during zebrafish postembryonic development, 205-218, Copyright (2021) with permission from Elsevier. Full text @ Dev. Biol.
