FIGURE

Fig. 7

ID
ZDB-FIG-210603-11
Publication
Kim et al., 2020 - Investigation of the role of VHL-HIF signaling in DNA repair and apoptosis in zebrafish
Other Figures
All Figure Page
Back to All Figure Page
Fig. 7

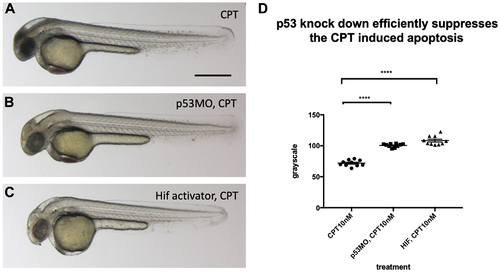

p53 knock down by p53 morpholino injection protects embryos from CPT induced apoptosis. (A) Embryos collected from vhl+/–; vll–/– pair mating were treated with 10 nM CPT. This resulted in severe cell death in the CPT treated embryos with the exception of GFP positive vhl–/–; vll–/– double mutants. (B) On the contrary, when p53 morpholino was injected into the embryos prior to 10 nM CPT treatment, all the embryos were protected from CPT induced apoptosis. (C) The similar protection was also observed in the embryos treated with Hif activator prior to CPT treatment. Only GFP negative embryos were imaged and quantified for this experiment. (D) The image quantification of levels of apoptosis using gray scale in ImageJ, low gray scale values denote high levels of apoptosis. ****p < 0.0001, one-way ANOVA. Scale bar: 0.5 mm.
