Fig. 2

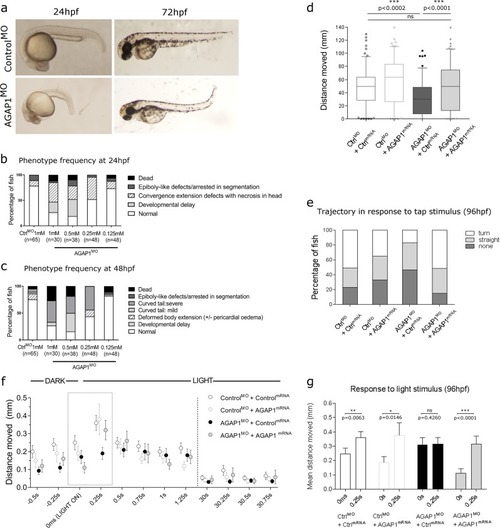

AGAP1 morphant zebrafish show gross developmental defects, neurological deficits and reduced motility. a Representative images of developmental phenotypes observed at 24 hpf and 72 hpf in AGAP1 morphant zebrafish larvae. At 24 hpf, we frequently observed gross developmental delay, including reduced pigment, with some larvae exhibiting necrosis in the head. At 72 hpf, AGAP1 morphant larvae frequently showed milder developmental delay and a curved tail. b, c Phenotype frequencies observed in morphant larvae at 24 and 48 hpf, respectively. AGAP1 morpholino was injected in a concentration range to assess dosage dependence of the phenotypes in morphant larvae. d–g AGAP1 morphant larvae show decreased activity and reduced escape response to stimuli at 96 hpf, which is partially rescued by co-injection of human AGAP1 mRNA. CTRL^MO + CTRL^mRNA; n = 48, CTRL^MO + AGAP1^MO; n = 42, AGAP1^MO + CTRL^mRNA; n = 40, AGAP1^MO + AGAP1^mRNA; n = 24. d AGAP1 morphant larvae (dark grey) show reduced activity compared to controls during 1 min in the dark (p = 0.0002). Larvae co-injected with human AGAP1 mRNA and AGAP1 morpholino (light grey, rescue) show significantly greater activity than AGAP1 morphants (p < 0.0001). There is no significant difference in activity between AGAP1 morphants co-injected with human AGAP1 mRNA (light grey, rescue) and either control. Complete statistics can be found in Supplementary Table 9. e AGAP1 morphant larvae display both a reduced escape response and an altered trajectory in the 250 ms following tap stimulation compared to larvae co-injected with Control morpholino and either Control mRNA or human AGAP1 mRNA. Larvae co-injected with AGAP1 morpholino and human AGAP1 mRNA show an increased reaction compared to both controls. Complete statistics can be found in Supplementary Table 10. ***p < 0.001; ns, not significant. f Activity of larvae measured over a time course in darkness and then following the light in the apparatus being switched on. Error bars are s.e.m. g Response to light measured over 250 ms following the light stimulus. All groups except AGAP1 morphant larvae display a characteristic spike in activity immediately following the light stimulus. AGAP1 morphant larvae (black bars) show no significant increase in activity in response to light (p = 0.426). Error bars are s.e.m. *p < 0.05, **p < 0.01, ***p < 0.001; ns, not significant
