FIGURE

Fig. 6

ID

ZDB-FIG-160609-26

Publication

Chen et al., 2016 - Du-Huo-Ji-Sheng-Tang Attenuates Inflammation of TNF-Tg Mice Related to Promoting Lymphatic Drainage Function

Other Figures

Fig. 6

All Figure Page

Back to All Figure Page

Fig. 6

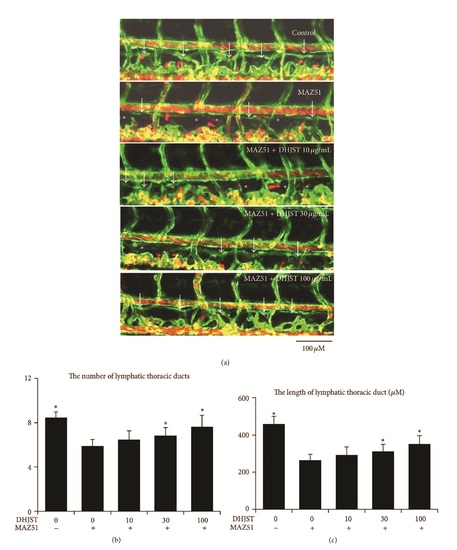

Impaired lymphatic thoracic duct formation induced by VEGFR-3 kinase inhibitor (MAZ51) was rescued by Du-Huo-Ji-Sheng-Tang in dose dependent manner. Two dpf zebrafish (fli1:egfp; gata1:DsRed) were treated with 30 µM MAZ51 for 6 hours and then changed to be treated with different doses of Du-Huo-Ji-Sheng-Tang (10-100 µg/mL) for 48 hours. Embryos treated with 0.2% DMSO served as a vehicle control. (a) Representative confocal images show that Du-Huo-Ji-Sheng-Tang increased lymphatic thoracic duct formation of zeberafish, white arrow indicates lymphatic thoracic duct, and white star indicates lack of lymphatic vessel. (b) Quantitation of the number of lymphatic thoracic ducts. (c) Quantitation of the length of lymphatic thoracic duct. Values are mean ± SD of 9–11 zebrafishes. *p < 0.05 versus MAZ51.

Expression Data

Genes:	DsRed EGFP
Fish:	sd2Tg; y1Tg
Anatomical Terms:	blood vessel nucleate erythrocyte
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Evid. Based Complement. Alternat. Med.
