ZFIN Figure: Jungke et al., 2015, Fig. 3

ZFIN ID: ZDB-FIG-150826-22

ZFIN ID: ZDB-FIG-150826-22

Jungke et al., 2015 - Isolation of Novel CreERT2-Driver Lines in Zebrafish Using an Unbiased Gene Trap Approach. PLoS One 10:e0129072 Full text @ PLoS One

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Gene:	EGFP
Fish:	tud107Tg; tud14Gt tud107Tg; tud19Gt tud107Tg; tud23Gt tud107Tg; tud24Gt tud107Tg; tud26Gt tud107Tg; tud31Gt tud107Tg; tud32Gt tud107Tg; tud33Gt tud107Tg; tud35Gt tud107Tg; tud36Gt baz2ba^tud21Gt; tud107Tg ccdc102a^tud29Gt; tud107Tg cdc42ep4b^tud16Gt; tud107Tg epha7^tud27Gt; tud107Tg hoxb1b^tud17Gt; tud107Tg klhl17^tud15Gt; tud107Tg mapre1a^tud12Gt; tud107Tg msx3^tud18Gt; tud107Tg otx1^tud37Gt; tud107Tg prdm16^tud28Gt; tud107Tg ptk2aa^tud11Gt; tud107Tg pvalb1^tud13Gt; tud107Tg si:ch73-248e17.1^tud20Gt; tud107Tg sox6^tud38Gt; tud107Tg srsf1b^tud30Gt; tud107Tg vldlr^tud25Gt; tud107Tg ywhaba^tud34Gt; tud107Tg
Condition:	chemical treatment: tamoxifen, heat shock
Anatomical Terms:	anatomical structure brain hindbrain neural tube somite spinal cord telencephalon
Stage:	Prim-5

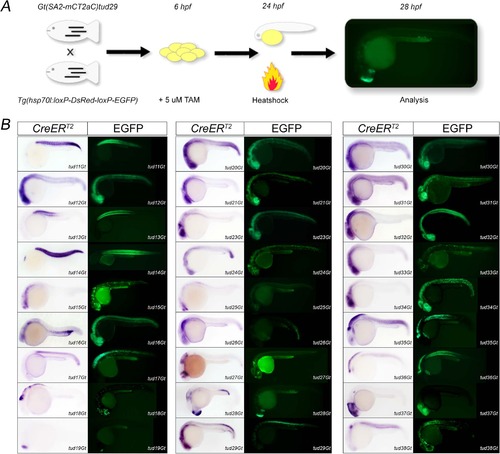

Fig. 3 Identification of functional CreER^T2-driver lines.

(A) Scheme of the embryonic functionality assay. (B) 27 CreER^T2-driver lines are shown with respect to CreER^T2 expression at 24 hpf (CreER^T2) and the respective embryonic functionality assay indicated by native EGFP fluorescence.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
EGFP	baz2ba^tud21Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	neural tube	IFL
	ccdc102a^tud29Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	cdc42ep4b^tud16Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	epha7^tud27Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	hoxb1b^tud17Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	spinal cord	IFL
			Prim-5	telencephalon	IFL
	klhl17^tud15Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	mapre1a^tud12Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	msx3^tud18Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	brain	IFL
	otx1^tud37Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	brain	IFL
	prdm16^tud28Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	brain	IFL
	ptk2aa^tud11Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	somite	IFL
	pvalb1^tud13Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	somite	IFL
	si:ch73-248e17.1^tud20Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	sox6^tud38Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
			Prim-5	somite	IFL
	srsf1b^tud30Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	tud107Tg; tud14Gt	heat shock, chemical treatment: tamoxifen	Prim-5	somite	IFL
	tud107Tg; tud19Gt	heat shock, chemical treatment: tamoxifen	Prim-5	spinal cord	IFL
			Prim-5	telencephalon	IFL
	tud107Tg; tud23Gt	heat shock, chemical treatment: tamoxifen	Prim-5	neural tube	IFL
	tud107Tg; tud24Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	tud107Tg; tud26Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	tud107Tg; tud31Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	tud107Tg; tud32Gt	heat shock, chemical treatment: tamoxifen	Prim-5	neural tube	IFL
			Prim-5	somite	IFL
	tud107Tg; tud33Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	tud107Tg; tud35Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
			Prim-5	hindbrain	IFL
	tud107Tg; tud36Gt	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
			Prim-5	hindbrain	IFL
	vldlr^tud25Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL
	ywhaba^tud34Gt; tud107Tg	heat shock, chemical treatment: tamoxifen	Prim-5	anatomical structure	IFL

Antibody Labeling Details No data available

Phenotype Details No data available
