FIGURE

Fig. 5

ID

ZDB-FIG-080904-1

Publication

Owens et al., 2008 - Identification of genetic and chemical modulators of zebrafish mechanosensory hair cell death

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

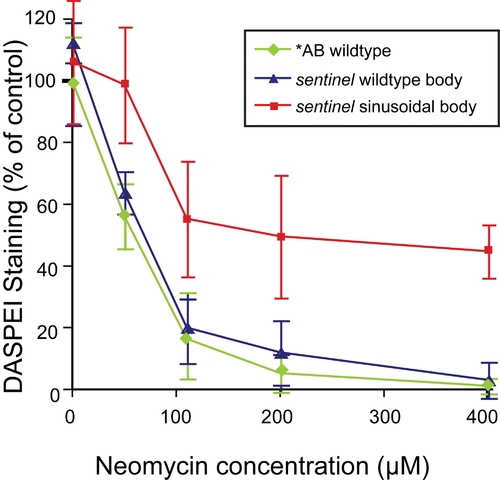

Dose dependent protection of sentinel mutants to neomycin.
Hair cell loss as determined by DASPEI staining of progeny of sentinel heterozygous parents with wildtype body shape (blue) or sinusoidal body shape (red) are compared to wildtype *AB fish (green). Error bars are ±1 S.D. Mutants show robust, but partial, protection following 30 min neomycin exposure and one hour recovery.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB cc2d2a^w38/w38 (AB)
Condition:	chemical treatment: neomycin
Observed In:	neuromast hair cell
Stage:	Day 5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Genet.
