FIGURE SUMMARY
Title

Lack of asmt1 or asmt2 Yields Different Phenotypes and Malformations in Larvae to Adult Zebrafish

Authors
Aranda-Martínez, P., Fernández-Martínez, J., Díaz-Casado, M.E., Ramírez-Casas, Y., Martín-Estebané, M., López-Rodríguez, A., Escames, G., Acuña-Castroviejo, D.
Source
Full text @ Int. J. Mol. Sci.

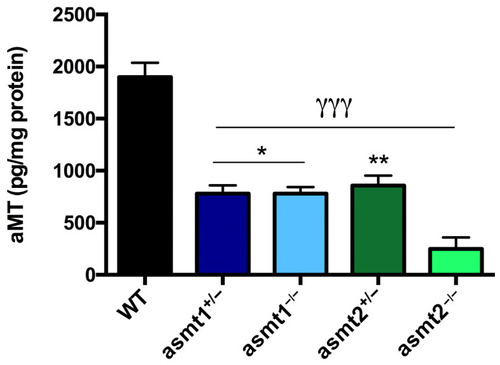

Melatonin concentration in zebrafish larvae. asmt1+/−, asmt1−/−, and asmt2+/− showed a significant reduction of 50% compared to WT. asmt2 −/− revealed an even greater decrease compared to the WT and the other mutant lines. Data are presented as mean ± SEM (n = 5 larvae/group). γγγ p < 0.001 vs. WT; * p < 0.05 vs. asmt2−/−; ** p < 0.01 vs. asmt2−/−. One-way ANOVA with Tukey’s post hoc test.

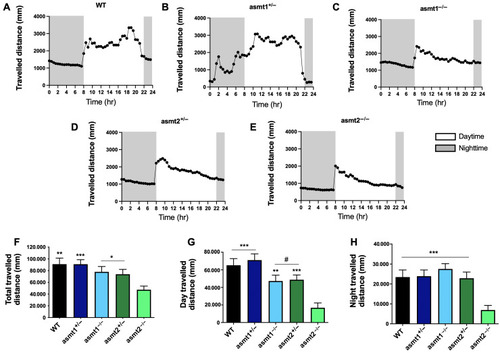

Total distance traveled during 24 h, 14 h light and 10 h darkness, by zebrafish larvae. (A) The WT group exhibited a normal activity pattern, with more activity during the day than during the night. (B) asmt1+/− experienced an advance in the activity phase, even at night. (C) asmt1−/−, (D) asmt2+/−, and (E) asmt2−/− did not show an activity rhythm. (F) The total distance traveled decreased significantly in asmt2−/− compared to the other groups. (G) asmt1−/− and asmt2+/− significantly decreased the distance traveled during the day compared to asmt1+/− and asmt2−/− compared to the rest of the groups. (H) Nighttime activity was significantly lower in asmt2−/− than in the WT and the other mutant lines. Data are presented as mean ± SEM (n = 12 larvae/group). # p < 0.01 vs. asmt1+/−; * p < 0.05 vs. asmt2−/−; ** p < 0.01 vs. asmt2−/−; *** p < 0.001 vs. asmt2−/−. Unpaired t test.

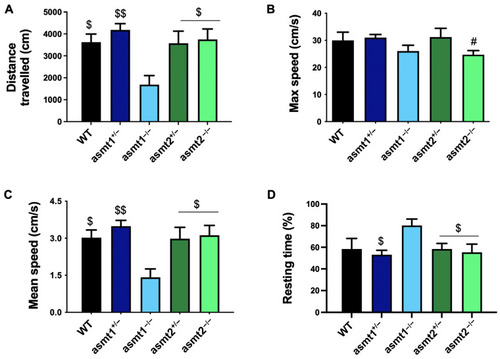

Locomotor activity recorded in adult zebrafish. (A) asmt1−/− showed a significant reduction in the distance traveled compared to WT, asmt1+/−, asmt2+/−, and asmt2−/−. (B) Both asmt1−/− and asmt2−/− showed a slight decrease in maximum speed compared to WT and heterozygotes, but only asmt2−/− was significant. (C) The mean speed only decreased significantly in asmt1−/− compared to the other groups. (D) asmt1−/− increased the resting time more than WT, asmt1+/−, asmt2+/−, and asmt2−/−. Data are presented as mean ± SEM (n = 5 larvae/group). # p < 0.05 vs. asmt1+/−; $ p < 0.05 vs. asmt1−/−; $$ p < 0.01 vs. asmt1−/−. Unpaired t test.

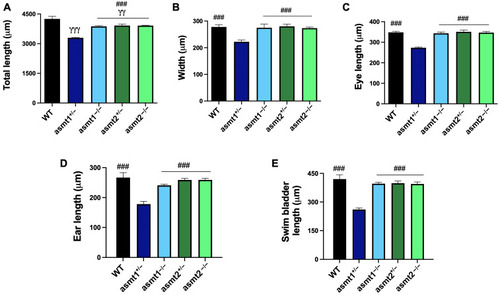

Morphometric aspects of zebrafish larvae. (A) The total length was significantly lower in asmt1+/−, asmt1+/−, asmt2+/−, and asmt2−/− than in WT. The asmt1+/− mutant line showed a significant reduction in (B) width, (C) eye length, (D) ear length, and (E) swim bladder length compared to WT and the other mutant groups. Data are presented as mean ± SEM (n = 5 larvae/group). γγ p < 0.01 vs. WT; γγγ p < 0.001 vs. WT; ### p < 0.001 vs. asmt1+/−. One-way ANOVA with Tukey’s post hoc test.

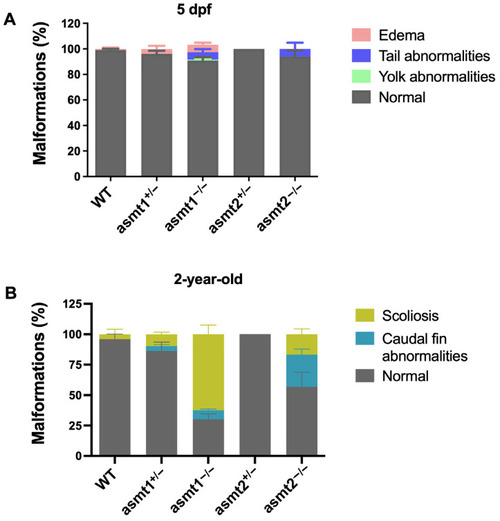

Malformations in 5 dpf zebrafish larvae and 2-year-old adult zebrafish. (A) Some asmt1+/− zebrafish showed edema, while in asmt1−/−, all three types of malformation were found, and tail malformation was observed in asmt2−/−, contrasting with WT and asmt2+/−, which did not show any malformations. (B) Malformations were found to increase in the asmt1+/− group, which were even greater in the homozygous lines. Scoliosis predominated in asmt1−/− and caudal fin malformation in asmt2−/−. However, asmt2+/− did not exhibit any malformations. Data are presented as mean ± SEM (n = 5 larvae/group).
