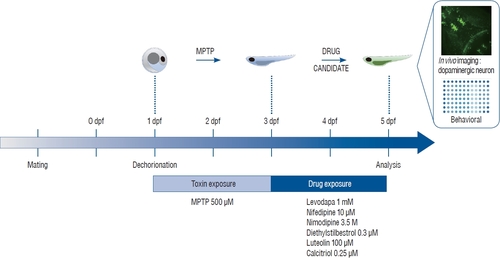

Fig. 1

Schematic illustration of toxin and drug treatment for the neuro-restoration protocol. One day post fertilization (dpf), dechorionated zebrafish were treated for 48 hours with 500 μM 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine (MPTP). MPTP was replaced with candidate drugs and treatment was continued for another 48 hours. After treatment, in vivo imaging and behavioral analyses were performed to reveal the neuro-restorative effects of the drugs following MPTP exposure.

Fig. 2

Zebrafish preparation for quantification of dopaminergic neurons. A : Immunostaining for tyrosine hydroxylase (TH) on horizontal cryosection of Tg(dat:EGFP) larvae at 3 days post-fertilization (dpf) following 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine (MPTP) treatment for 48 hours from 1 dpf with each MPTP concentration. B : In vivo imaging technique by fixing the whole larva ventrally. C : In vivo imaging technique by fixing the heads of larvae. Representative morphology of dopaminergic neurons in Tg(dat:EGFP) by in vivo imaging with each MPTP concentration. Ventral view, head at the left, tectum at the right.

Fig. 3

The maximum concentration of the drugs that did not induce any morphological changes. A : Levodapa 1 mmol. B : Nifedipine 10 μmol. C : Nimodipine 3.5 μmol. D : Diethylstilbestrol 0.3 μmol. E : Calcitriol 0.25 μmol. F : Luteolin 100 μmol.

Fig. 4

Locomotor behavior analysis for 20 minutes under light conditions. *p<0.05 vs. the MPTP followed by DMSO-treated group. E3 : embryo medium (5 mmol NaCl, 0.17 mmol KCl, 0.33 mmol CaCl2, 0.33 mmol MgSO4), DMSO : dimethylsulfoxide, DES : diethylstilbestrol, L-DOPA : levodopa, NIFE : nifedipine.

Fig. 5

Representative morphology of dopaminergic neurons in Tg(dat:EGFP) in vivo imaging with each drug. Scale bars (gray line), 100 μm. Ventral view, head at the left, tectum at the right. DMSO : dimethylsulfoxide, DES : diethylstilbestrol.

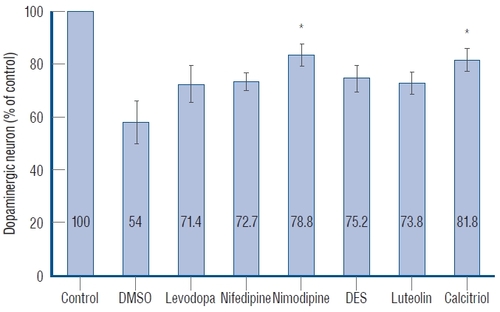

Fig. 6

Quantitative analysis of dopaminergic neurons in Tg(dat:EGFP) zebrafish ventral diencephalon. Data are expressed as a percentage of the control group. Each bar represents mean±standard deviation. *p<0.05 vs. the MPTP followed by DMSO-treated group. DMSO : dimethylsulfoxide, DES : diethylstilbestrol.

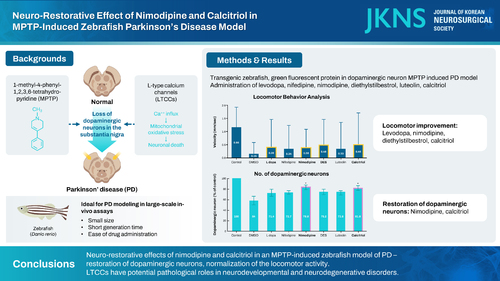

Fig. Abs
