(A) Schematic illustration of the brain of a zebrafish embryo (dorsal view and lateral view). Expression profile of Wnt3EGFP in Tg(−4.0wnt3:Wnt3EGFP) line at (B) 24 hpf and (C) 48hpf. Expression profile of PMTmApple in Tg(−4.0wnt3:PMTmApple) line at (D) 24 hpf and (E) 48hpf. BV, brain ventricle; Ce, cerebellum; CP, choroid plexus; E, epiphysis; FP, floor plate; HB, hindbrain; MHB, midbrain–hindbrain boundary; mRP, midbrain roof plate; OT, optic tectum; r, rhombomere; RP, roof plate (spinal cord); SCO, sub-commissural organ. SCO and E are regions of the epithalamus (Epi). Images orientation: anterior to the left. Scale bar 30 μm.

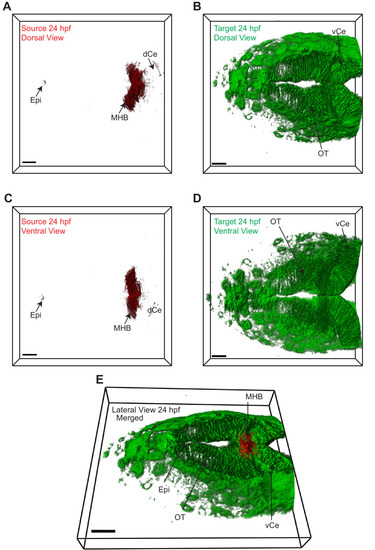

3D dorsal projection of Wnt3 (A) source regions at 24 hpf and (B) target regions at 24 hpf (top view). 3D ventral projection of Wnt3 (C) source regions at 24 hpf and (D) target regions at 24 hpf (bottom view). (E) 3D projection of Wnt3 source and target regions at 24 hpf (lateral view). See Video 3 for a detailed view. dCe, dorsal regions of cerebellum; Epi, epithalamus; MHB, midbrain?hindbrain boundary; OT, optic tectum; vCe, ventral regions of cerebellum. Images orientation: anterior to the left. Scale bar 30 ?m.

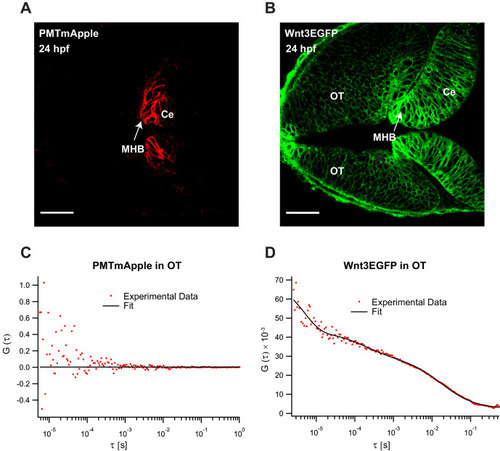

Expression of (A) PMTmApple and (B) Wnt3EGFP in Tg(−4.0wnt3:Wnt3EGFP) × Tg(−4.0wnt3:PMTmApple) double transgenic embryos at 24 hpf. Representative autocorrelation function (ACF) for (C) PMTmApple and (D) Wnt3EGFP in the OT at 24 hpf. No ACFs were obtained for PMTmAPple in the target regions indicating an absence of mApple signal in these regions. Ce, cerebellum; MHB; midbrain–hindbrain boundary; OT, optic tectum. Images orientation: anterior to the left. Scale bar 30 μm.

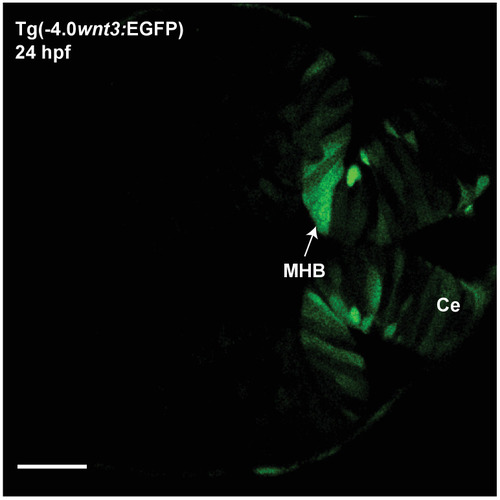

The expression of EGFP in Tg(-4.0wnt3:EGFP) closely mimics the expression of PMTmApple in Tg(−4.0wnt3:PMTmApple). Ce, cerebellum; MHB; midbrain–hindbrain boundary. Images orientation: anterior to the left. Scale bar 30 μm.

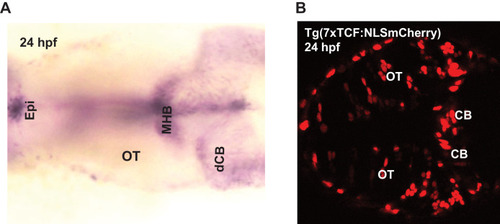

(A) Whole mount in situ hybridization (dorsal view) of wnt3 at 24 hpf. The expression pattern is similar to previously published results in Clements et al., 2009, Duncan et al., 2015, and Teh et al., 2015. (B) Expression of NLS-mCherry in wnt reporter line Tg(7XTcf-Xla.Siam:NLS-Cherry) at 24 hpf. dCB, cerebellum; Epi, epithalamus; FP, floor plate; MHB, midbrain–hindbrain boundary; mRP, midbrain roof plate; OT, optic tectum. Orientation: anterior to left.

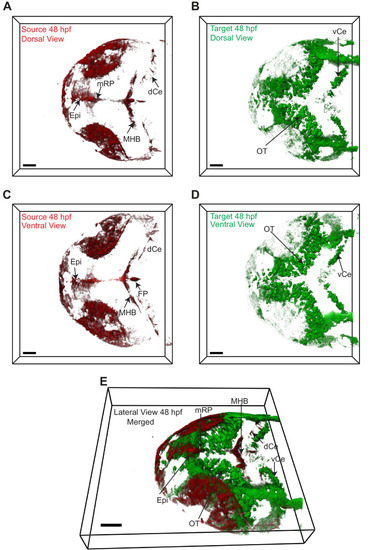

3D dorsal projection of Wnt3 (A) source regions at 48 hpf and (B) target regions at 48 hpf (top view). 3D ventral projection of Wnt3 (C) source regions at 48 hpf and (D) target regions at 48 hpf (bottom view). (E) 3D projection of Wnt3 source and target regions at 48 hpf (lateral view). See Video 4 for a detailed view. dCe, dorsal regions of cerebellum; Epi, epithalamus; FP, floor plate; MHB, midbrain?hindbrain boundary; mRP, midbrain roof plate; OT, optic tectum; vCe, ventral regions of cerebellum. Images orientation: anterior to the left. Scale bar 40 ?m.

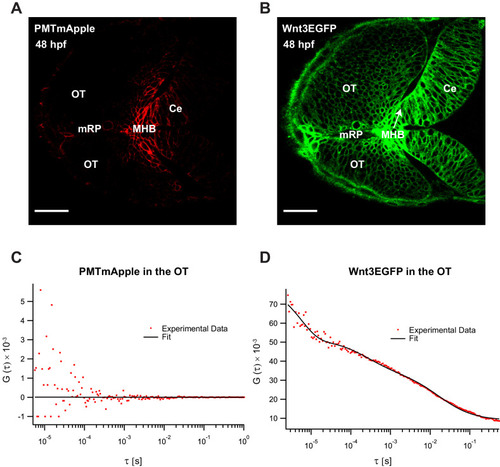

Expression of (A) PMTmApple and (B) Wnt3EGFP in Tg(−4.0wnt3:Wnt3EGFP) × Tg(−4.0wnt3:PMTmApple) double transgenics at 48 hpf. Representative autocorrelation function (ACF) for (C) PMTmApple and (D) Wnt3EGFP in the OT at 48 hpf. No ACFs were obtained for PMTmAPple in the target regions indicating an absence of mApple signal in these regions. Ce, cerebellum; MHB, midbrain–hindbrain boundary; OT, optic tectum. Images orientation: anterior to the left. Scale bar 30 μm.

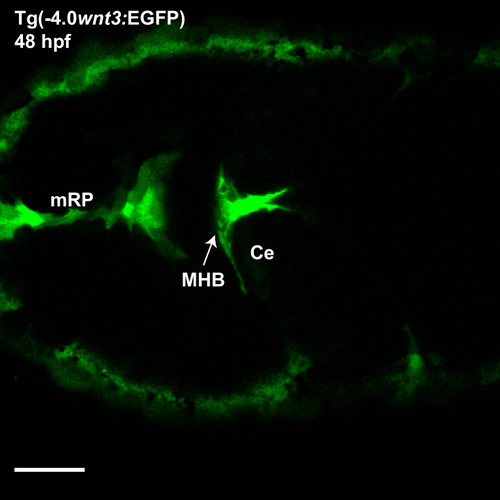

The expression of EGFP in Tg(-4.0wnt3:EGFP) closely mimics the expression of PMTmApple in Tg(−4.0wnt3:PMTmApple). Ce, cerebellum; MHB, midbrain–hindbrain boundary; OT, optic tectum. Images orientation: anterior to the left. Scale bar 30 μm.

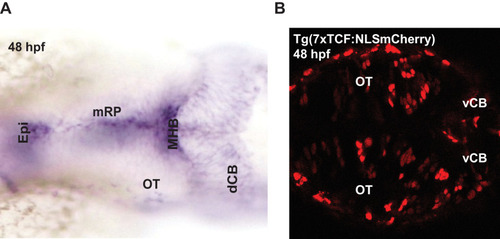

(A) Whole mount in situ hybridization (dorsal view) of wnt3 at 48 hpf. The expression pattern is similar to previously published results in Clements et al., 2009, Duncan et al., 2015, and Teh et al., 2015. (B) Expression of NLS-mCherry in wnt reporter line Tg(7XTcf-Xla.Siam:NLS-Cherry) at 48 hpf. dCB, cerebellum; Epi, epithalamus; FP, floor plate; MHB, midbrain–hindbrain boundary; mRP, midbrain roof plate; OT, optic tectum. Orientation: anterior to left.

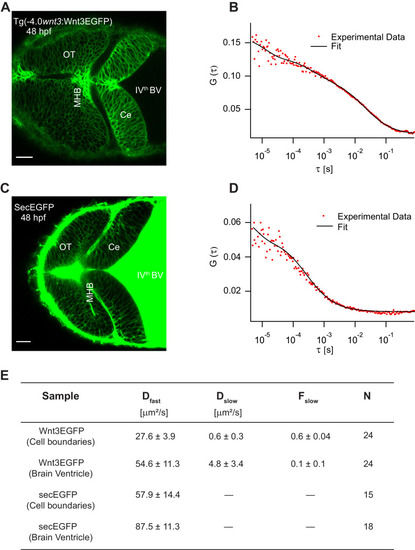

(A) Expression of Wnt3EGFP in Tg(?4.0wnt3:Wnt3EGFP) at 48 hpf. (B) Representative autocorrelation function (ACF; dots) and fitting (line) of a Wnt3EGFP measurement at a cell boundary. (C) Expression of secEGFP in the zebrafish brain at 48 hpf. (D) Representative ACF (dots) and fitting (line) of a secEGFP measurement at a cell boundary. (E) Table showing diffusion coefficients of the fast component (Dfast), slow component (Dslow) and the fraction of slow component (Fslow) for Wnt3EGFP and secEGFP measured by FCS. Measurements were performed in the cell borders of Ce, MHB, and OT; and in the BV. Data are mean ± SD; N = No of measurements. BV, brain ventricle; Ce, cerebellum; MHB, midbrain?hindbrain boundary; OT, optic tectum. Images orientation: anterior to left. Scale bar 30 ?m.

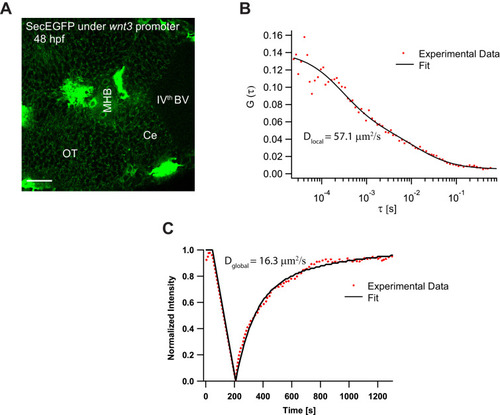

(A) Expression of secEGFP under wnt3 promoter in the zebrafish brain at 48hpf. (B) Representative fluorescence correlation spectroscopy measurement of secEGFP under wnt3 promoter with a diffusion coefficient of 57.1 μm²/s. (C) Representative fluorescence recovery after photobleaching recovery curve of secEGFP under wnt3 promoter with a diffusion coefficient of 16.3 μm²/s. Orientation: anterior to the left. Scale bar 30 μm.

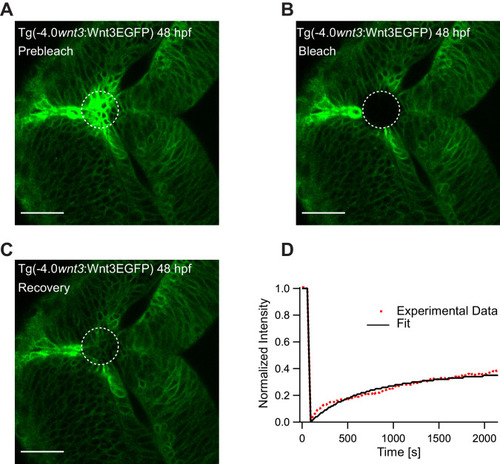

(A) Expression of Wnt3EGFP in Tg(?4.0wnt3:Wnt3EGFP) at 48 hpf before photobleaching. (B) Photobleached region of Wnt3EGFP. (C) Recovery of fluorescence intensity in the bleached region due to diffusion of molecules from the neighboring unbleached regions. (D) Fluorescence recovery curve for Wnt3EGFP with a time constant (?fast) of ~5 min and a mobile component fraction (Fm) of ~0.35. The average apparent global diffusion coefficient (Dglobal) measured for Wnt3EGFP was 0.5 ± 0.2 ?m2/s (N = 11). Fluorescence recovery after photobleaching for Wnt3EGFP at a distal target site showed similar recovery dynamics (Figure 5?figure supplement 1) whereas recovery after heparan sulfate proteoglycan disruption showed faster recovery (Figure 5?figure supplement 2). Orientation: anterior to the left. Scale bar 30 ?m.

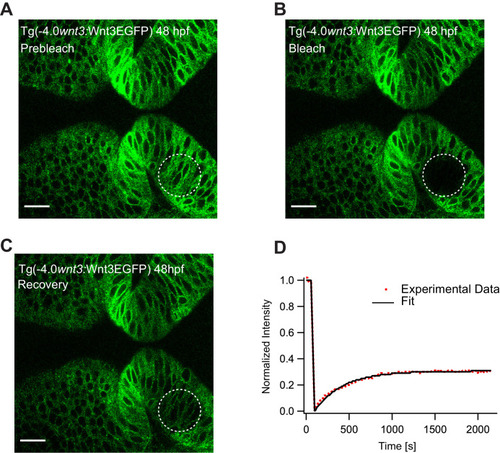

(A) Expression of Wnt3EGFP in Tg(−4.0wnt3:Wnt3EGFP) 48 hpf before photobleaching. (B) Photobleached region of Wnt3EGFP. (C) Recovery of fluorescence intensity in the bleached region due to diffusion of molecules from the neighboring unbleached regions. (D) Fluorescence recovery curve for Wnt3EGFP with a time constant (τ_fast) of ~6.5 min and an apparent global diffusion coefficient (D_global) of 0.47 μm²/s. Scale bar 30 μm.

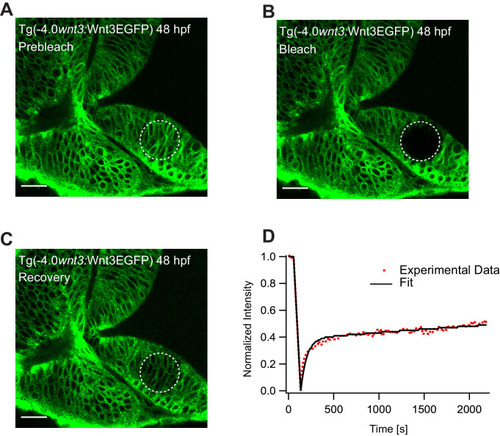

(A) Expression of Wnt3EGFP in Tg(−4.0wnt3:Wnt3EGFP) before photobleaching in HSPG disrupted embryos. (B) Photobleached region of Wnt3EGFP. (C) Recovery of fluorescence intensity in the bleached region due to diffusion from the neighboring unbleached regions. (D) Fluorescence recovery curve for Wnt3EGFP with a recovery time (τ_fast) of ~1.5–2.5 min and a D_global of ~1.5–3.75 μm²/s, which is approximately two to three times faster than untreated embryos as shown in Figure 5. Images orientation: anterior to the left. Scale bar 30 μm.

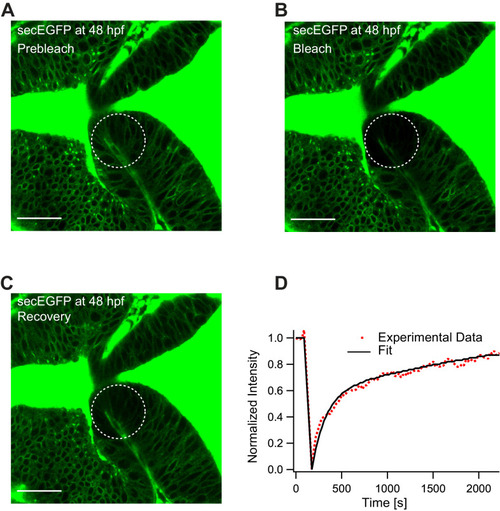

(A) Expression of secEGFP before photobleaching. (B) Photobleached region of secEGFP. (C) Recovery of fluorescence intensity in the bleached region due to diffusion of molecules from the neighboring unbleached regions. (D) Fluorescence recovery curve for secEGFP with a quick recovery time (τ_fast) of ~45 s and a fraction of mobile component (F_m) of ~0.85. The average global diffusion coefficient (D_global) measured for secEGFP was 13 ± 4 μm²/s. Images orientation: anterior to the left. Scale bar 30 μm.

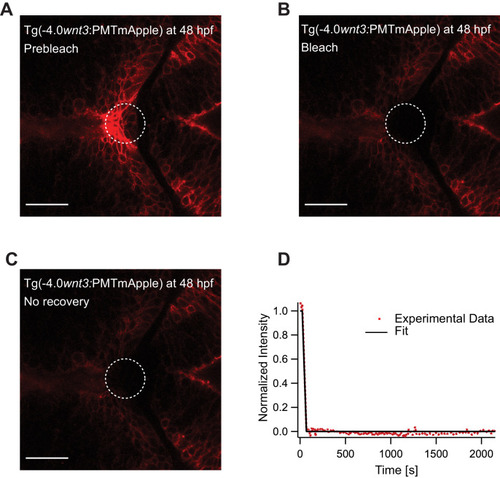

(A) Expression of PMTmApple in Tg(−4.0wnt3:PMTmApple) at 48 hpf before photobleaching. (B) Photobleached region of PMTmApple. (C) No recovery of fluorescence intensity in the bleached region as PMT remains tethered to the cell membrane and does not diffuse. (D) Fluorescence recovery curve for PMTmApple. Images orientation: anterior to the left. Scale bar 30 μm.

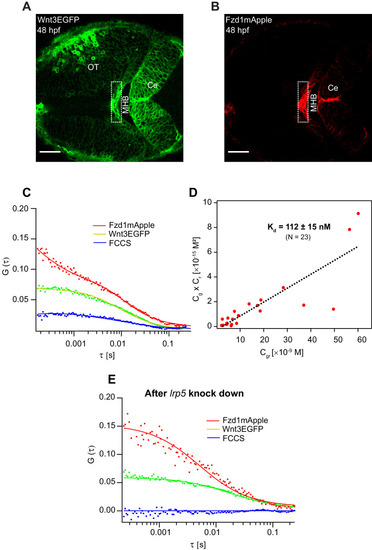

Expression of (A) Wnt3EGFP and (B) Fzd1mApple in the double transgenic [Tg(?4.0wnt3:Wnt3EGFP)×Tg (?4.0wnt3:Fzd1mApple)] (anterior to the left). (C) Representative auto- and cross-correlation functions (dots) and fittings (lines) of a Wnt3EGFP-Fzd1mApple measurement at the indicated region. The cross-correlation function indicates Wnt3EGFP interacts with Fzd1mApple in vivo. (D) Determination of apparent dissociation constant (Kd) for Wnt3-Fzd1 interaction in vivo. Cg, Cr, and Cgr represents the concentration of unbound Wnt3EGFP, unbound Fzd1mApple, and bound Wnt3-Fzd1 molecules respectively. The estimated apparent Kd [Kd = (Cg × Cr)/Cgr] for Wnt3-Fzd1 in vivo is 112 ± 15 nM (N = 23; R2 = 0.85). (E) Representative auto- and cross-correlation functions (dots) and fittings (lines) of a Wnt3EGFP-Fzd1mApple measurement after knocking down lrp5. No cross-correlation indicates Wnt3-Fzd1 interaction is abolished after knockdown of lrp5. Scale bars 30 ?m.

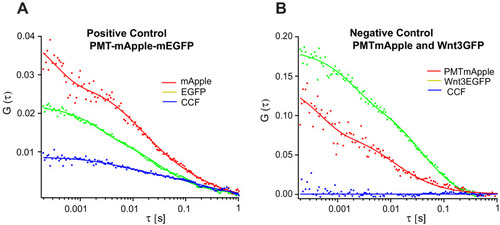

Representative auto- and cross-correlation functions for (A) PMT-mApple-mEGFP which is a positive control showing a clear cross-correlation and (B) negative control PMT-mApple and Wnt3-EGFP showing no cross-correlations.

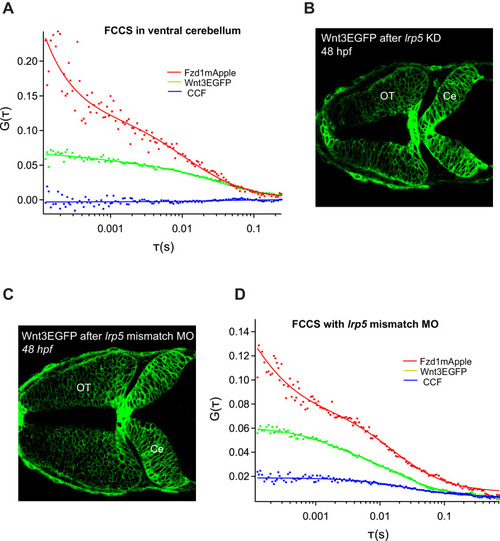

(A) Representative FCCS measurement for Wnt3EGFP and Fzd1mApple in regions with no Lrp5 expression (ventral cerebellum). No cross-correlations obtained outside midbrain–hindbrain boundary and dorsal cerebellum indicating role of Lrp5 in Wnt3-Fzd1 interaction. (B) Knocking down lrp5 morpholino resulting in deformed optic tectum (OT) and cerebellum (Ce) of the zebrafish brain. (C) Wnt3EGFP after treatment with negative control lrp5 mismatch MO with five nucleotide substitutions showing normal brain development and (D) retaining cross-correlations between Wnt3EGFP and Fzd1mApple.

(A) Expression of Wnt3EGFP before photobleaching. (B) Photobleached region of Wnt3EGFP. (C) Recovery of fluorescence intensity in the bleached region due to diffusion of molecules from the neighboring unbleached regions. (D) Fluorescence recovery curve for Wnt3EGFP with a recovery time (τ_fast) of ~150 s and a fraction of mobile component (F_m) of ~0.5. The average global diffusion coefficient (D_global) measured for Wnt3EGFP after lrp5 knockdown was 2.8 ± 0.8 μm²/s. Images orientation: anterior to the left. Scale bar 30 μm.
