FIGURE SUMMARY
Title

Developmental Toxicity of Diclofenac and Elucidation of Gene Regulation in zebrafish (Danio rerio)

Authors
Chen, J.B., Gao, H.W., Zhang, Y.L., Zhang, Y., Zhou, X.F., Li, C.Q., Gao, H.P.
Source
Full text @ Sci. Rep.
Fig. 3

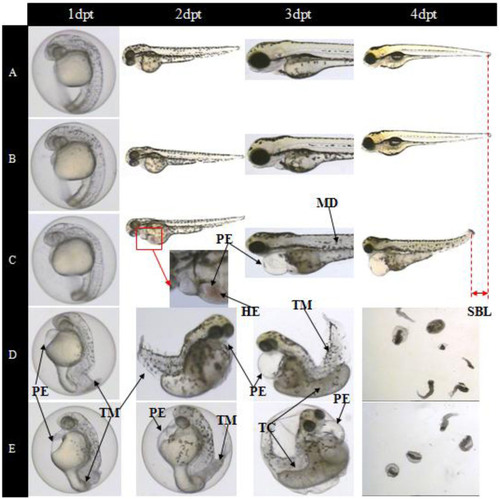

(A) Control group; (B) 1.01μM exposure group; (C) 3.38μM exposure group; (D) 10.13μM exposure group; (E) 15.2μM exposure group. HE: hemagglutination, MD: muscle degeneration, PE: pericardial edema, SBL: short body length, TC: trunk curvature, TM: tail malformation.
Fig. 5

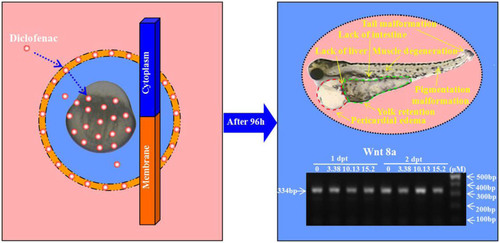

(The gels and blots of Wnt8a were cropped and the full-length blots/gels were presented in Supplementary Figure S9).
Fig. S5

Toxic characteristics of zebrafish related to the eye, muscle, liver, intestine and circulation during the exposure at 4 dpt. (A) Control group; (B) 1.01 μM exposure group; (C) 3.38 μM exposure group.
Fig. S6

Toxic characteristics of zebrafish related to pericardial and body edema during the exposure at 4 dpt. (A) Control group; (B) 1.01 μM exposure group; (C) 3.38 μM exposure group
Fig. S7

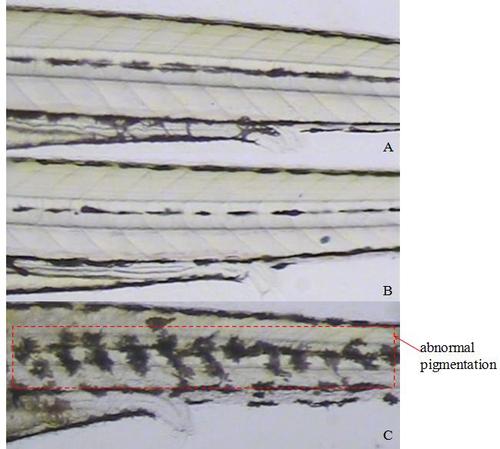

Toxic characteristics of zebrafish related to abnormal pigmentation during the exposure at 4 dpt. (A) Control group; (B) 1.01 μM exposure group; (C) 3.38 μM exposure group
