FIGURE 4
- ID
- ZDB-IMAGE-260512-14
- Genes
- Publication
- Nieoczym et al., 2026 - Studies on the anticonvulsant potential of 6-gingerol, an active ingredient of ginger rhizome
- All Figures
- Figures for Nieoczym et al., 2026
|
Figure Caption

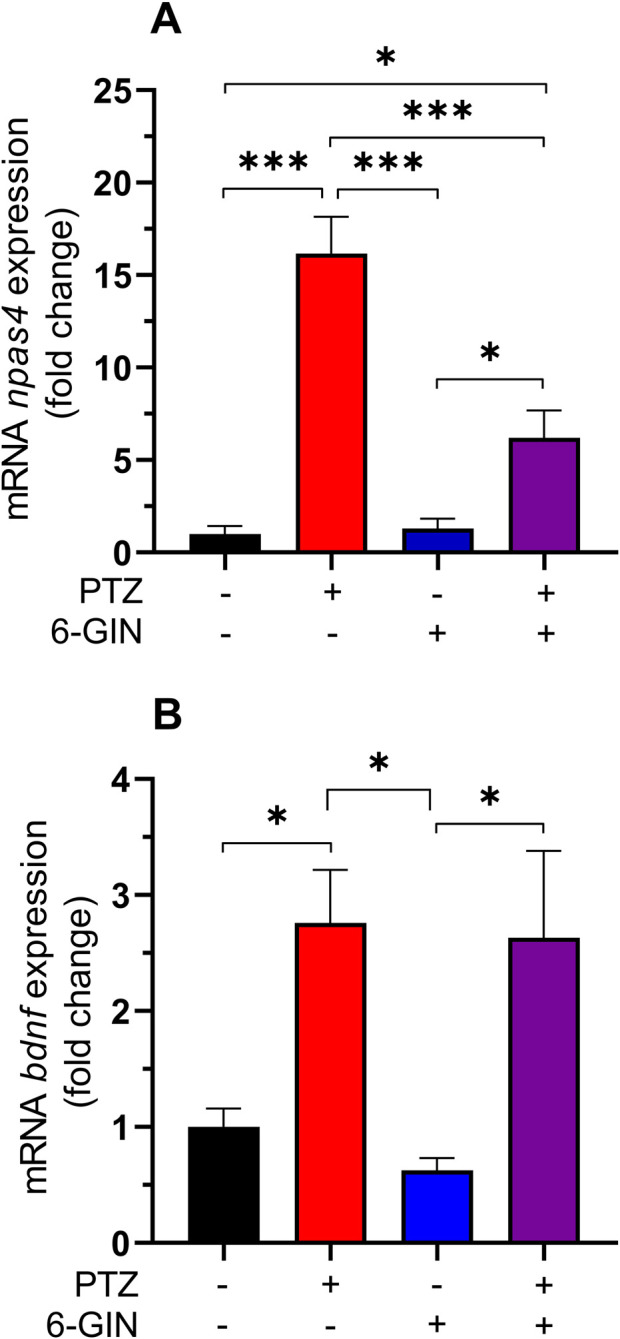

FIGURE 4 Effect of 6-gingerol on npas4 and bdnf mRNA expression in the PTZ-treated zebrafish larvae. After a 22 h incubation in 6-gingerol (37.5 μM), zebrafish larvae were exposed to PTZ (20 mM) for 60 min. Next, zebrafish larvae were collected in a pool of n = 10/sample. mRNA levels were normalized against 18S and b2m. Data were analyzed using one–way ANOVA with Tukey’s post hoc test: (A), F(3, 19) = 32.12, p < 0.0001; (B), F(3, 18) = 6.403, p = 0.0038. Data are depicted as a mean + SEM (n = 5–6/group). ***p < 0.001, *p < 0.05. 6-GIN, 6-gingerol; PTZ, pentylenetetrazole.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front Pharmacol
